Green Beam Rotary Laser Position Finder, 1000m FLG 245HV-Green Tracking

Green Beam Rotary Laser Position Finder, 1000m FLG 245HV-Green Tracking is a high-end industrial measuring device from the Geo Fennel brand, Germany, manufactured in China. The device is specially designed with a green laser beam to enhance brightness and visibility in interior and strong outdoor lighting conditions.

With a working radius of up to 1000m when used with the FR 77-M Tracking receiver, the device meets precise measurement requirements in construction, land leveling, topographic surveying, and technical execution. The self-leveling function on horizontal and vertical planes and the X/Y axis tilt adjustment enable flexible and accurate operation under various conditions.

The device also features a laser scanning function (scan) with two modes: point and line, along with convenient remote control, making measurement tasks faster and more efficient.

• Bright green laser beam using PowerSwitch-Technology to boost laser brightness from class 2 to equivalent class 3R.
• Fast automatic leveling on both horizontal and vertical planes within ±5° range.
• Manual tilt adjustment of X and Y axes within ±5° (±9%).

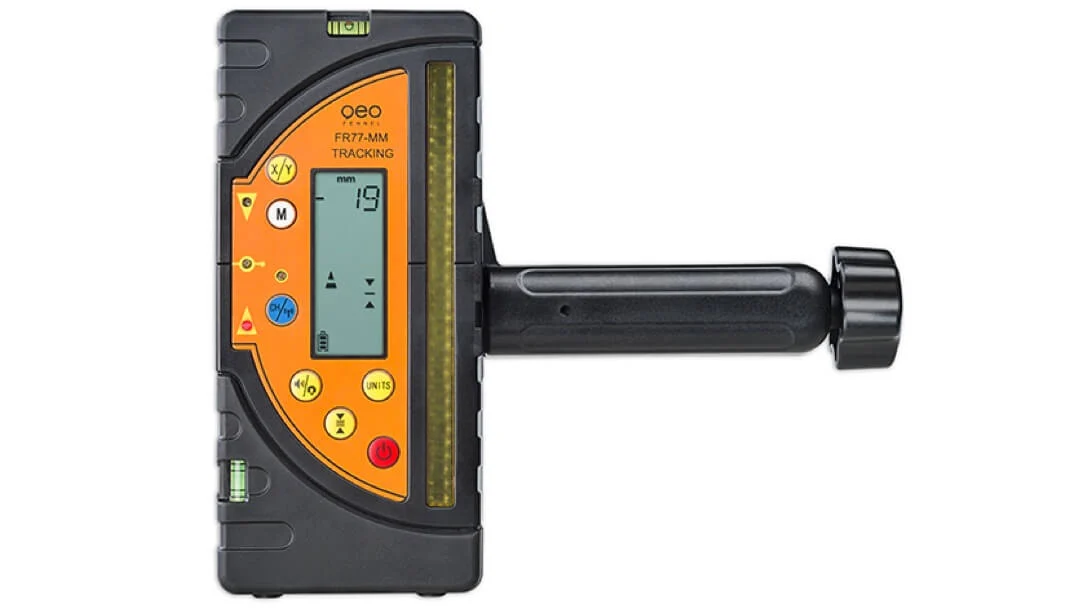

• Laser position detection with FR 77-M Tracking receiver, displaying distance and direction to the laser position on the receiver screen.
• Laser scanning function (scan) with 2 modes (point and line) to expand the observation range.
• Sound alert and automatic laser shutoff when exceeding self-leveling range to ensure safety and accuracy.
• Manual tilt working mode (TILT) for flexibility in special applications.
• Multi-speed rotation at 300 and 800 rpm suitable for various tasks.
• Remote control with a 100m operating range.
• NiMH rechargeable battery with continuous operation up to 24 hours.
• Dust and water protection rating IP54 suitable for outdoor working environments.

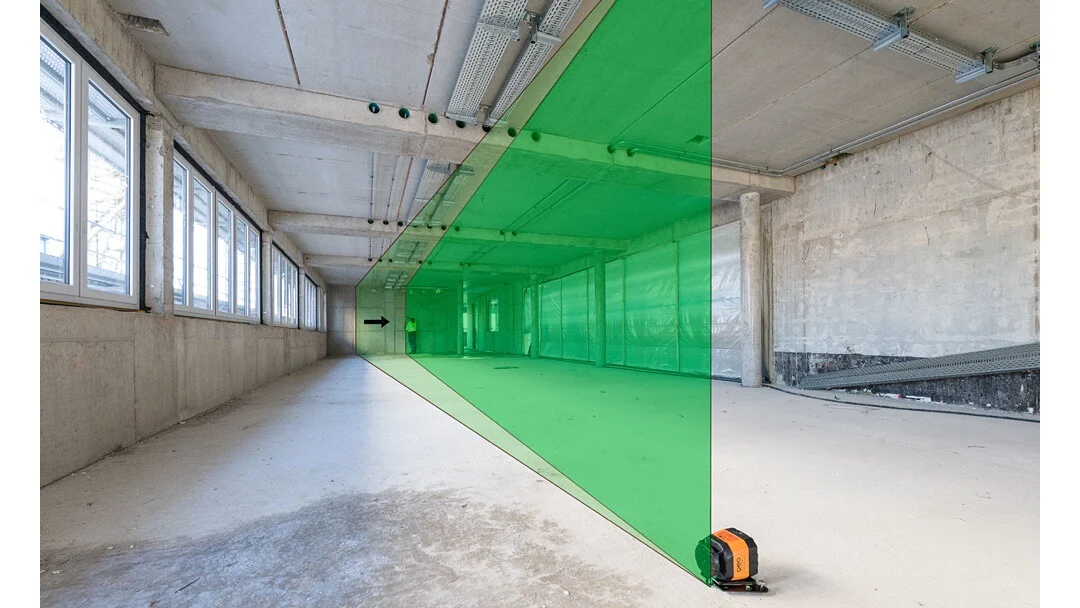

• Through-ceiling laser point projection to support accurate indoor measurements.

The FLG 245HV-Green Tracking rotary laser is widely used in fields such as:

• Measurement and land leveling in construction projects.
• Topographic surveying and technical measurements.

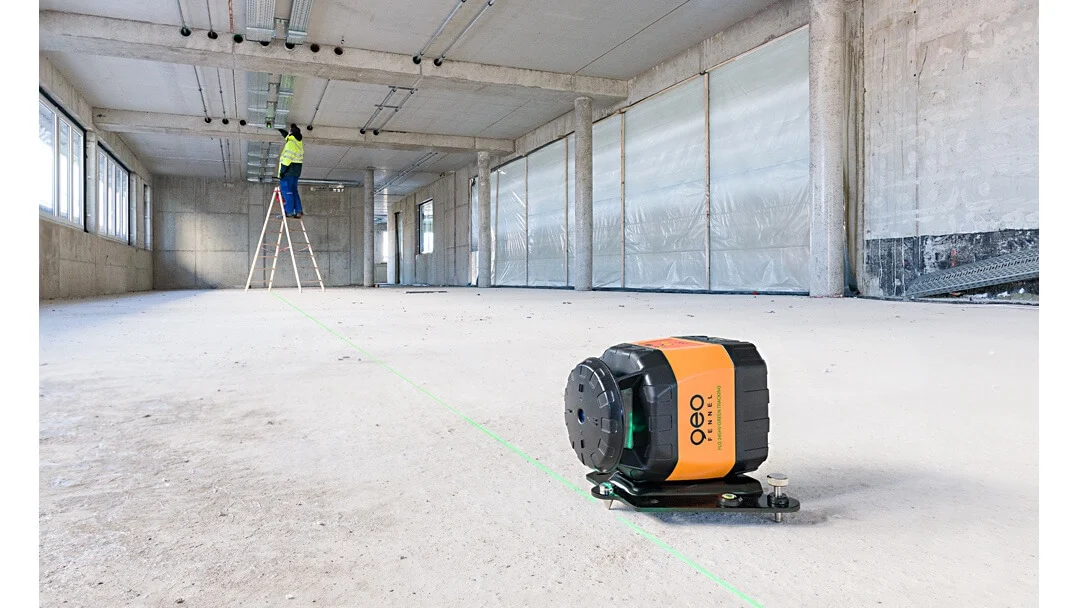

• Indoor construction requiring high accuracy thanks to the bright green laser beam.
• Positioning and tilt, elevation checks in infrastructure and road construction.
• Applications requiring fast, accurate measurements with large working radius and convenient remote control.

With a robust design, IP54 dust and water resistance, and long operating time, the FLG 245HV-Green Tracking rotary laser is an ideal choice for engineers, contractors, and professional construction units.

• 1 genuine Geo Fennel, Germany FLG 245HV-Green Tracking unit.
• 1 FR 77-M Tracking laser receiver with rod clamp.
• 1 remote control.
• 1 NiMH rechargeable battery pack.
• 1 smart battery charger.
• 1 AA battery compartment.
• 1 wall mount base.
• 1 floor stand base.
• 1 green laser filter glass.
• 1 green laser reflective target plate.
• 1 user manual.
• 1 carrying case for device and accessories.
• 1 12-month warranty card from Le Quoc Equipment.
