400m Laser Level FL 220HV - Geo Fennel
- Includes 1 laser signal receiver FR 45.
- Working radius with FR 45 receiver: 400m.
- Laser beam color: red.
- Automatic horizontal and vertical leveling.
- Rotation speed 600 rpm.
- Acoustic signal when exceeding self-leveling range.
- Manual slope operation function.
- Suitable for indoor and outdoor use.
- Uses NiMH rechargeable battery.
- Through-beam laser point.
- Receiver emits acoustic signals with varying frequency near detection point.
Introduction
400m Laser Level FL 220HV by Geo Fennel is a high-quality industrial measuring device, specially designed for tasks requiring precision in leveling and measurements both outdoors and indoors.
With automatic horizontal and vertical leveling capabilities and a working radius up to 400m when using the FR 45 receiver, the device effectively meets strict requirements in construction, project execution, and technical measurement applications.
The device uses a clear red laser beam, rotates at 600 rpm, and is powered by a NiMH rechargeable battery for long operation time. It also features an acoustic warning when exceeding the self-leveling range, enabling users to easily monitor the working process.
Features
- Automatic horizontal and vertical leveling saves time and enhances accuracy.
- Bright red laser beam easily visible under various lighting conditions.
- 600 rpm rotation speed ensures stable and precise laser beam.
- Acoustic alert when exceeding self-leveling range ensures safety and prevents errors during operation.
- Manual slope operation allows drawing steep inclined lines, serving diverse construction needs.
- NiMH rechargeable battery provides up to 20 hours of continuous use, ideal for outdoor work.

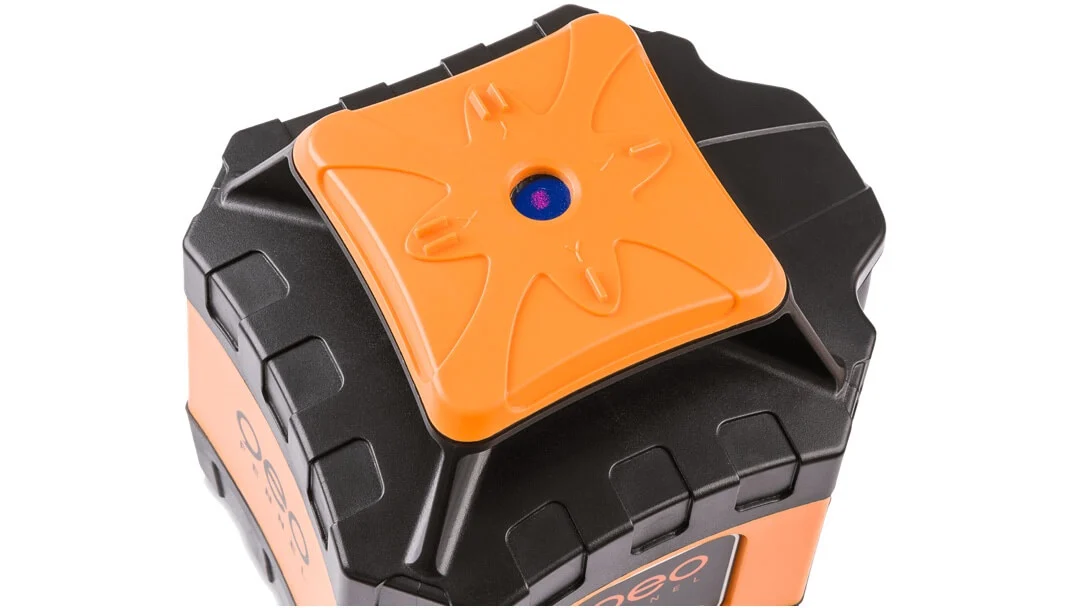

- Through-beam laser point projecting onto the ceiling supports effective automatic leveling.
- IP54 protection rating resists dust and water, suitable for harsh construction environments.

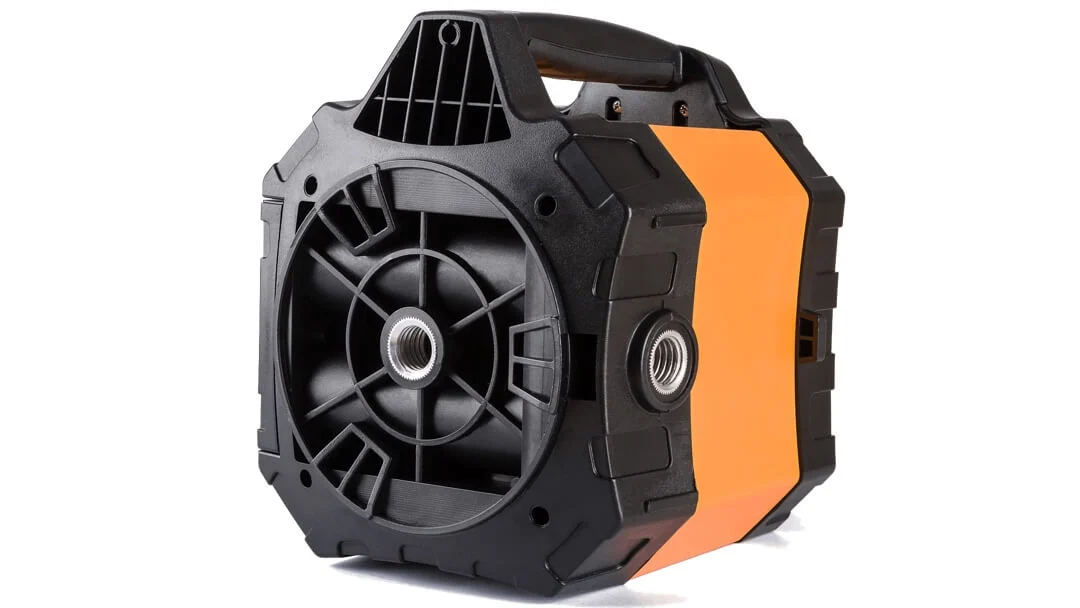

- Two ⅝” threaded holes on the base and side for tripod mounting, convenient during use.
Applications
The FL 220HV laser level is widely used in construction, civil engineering, topographic surveying, and technical tasks requiring precise leveling and slope measurements. The device is suitable for both indoor and outdoor environments thanks to its fast self-leveling capability and large working radius.
Additionally, the manual slope operation function allows use in tasks requiring steep angles such as wall erection, plumbing, electrical installations, and other civil works.
Technical Specifications - 400m Laser Level FL 220HV Geo Fennel
- Self-leveling: horizontal and vertical (X & Y).
- Self-leveling range: ± 5°.
- Horizontal accuracy: ± 1 mm / 10 m.
- Vertical accuracy: ± 1.5 mm / 10 m.
- Working radius without receiver: 30 m* (depends on ambient brightness).
- Working radius with FR 45 receiver: 400 m.
- Rotation speed: 600 rpm.
- Power source: NiMH rechargeable battery.
- Operating time with full battery: 20 hours.
- Dust/water protection rating: IP54.
- Laser diode: red.
- Laser class: 2.
- Manual operation function: Yes.
- Acoustic alert when exceeding self-leveling range: Yes.
- Operating temperature: -20°C to +50°C.

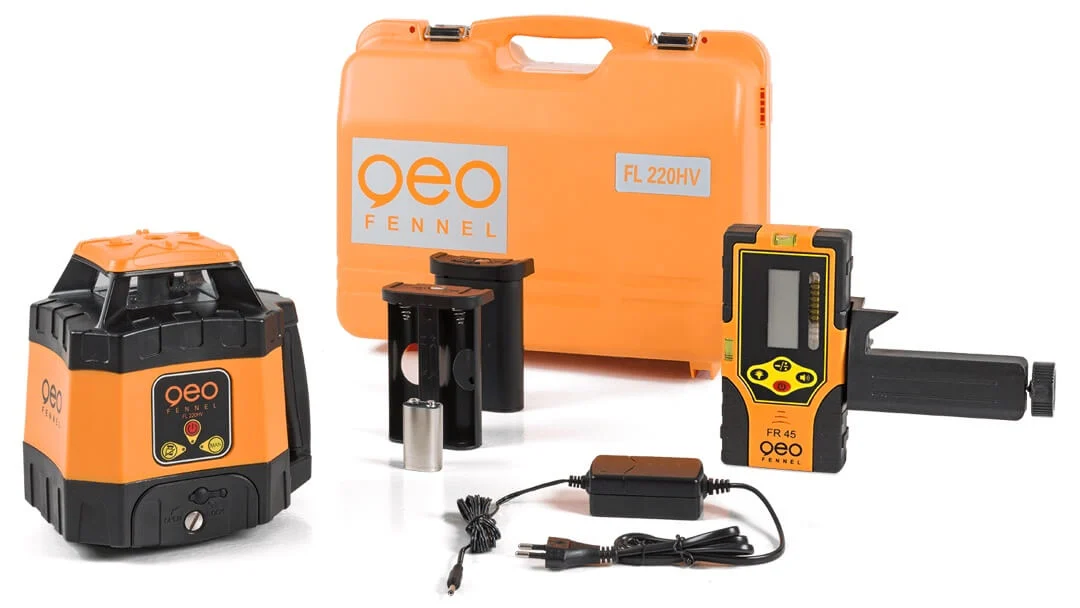

Package Contents
- 1 unit of FL 220HV imported officially from Geo Fennel, Germany.
- 1 FR 45 receiver with rod clamp.
- 1 NiMH rechargeable battery set.
- 1 battery charger.
- 1 user manual.
- 1 carrying case for device and accessories.
- 1 twelve-month warranty card from Le Quoc Equipment.
