Rotary Laser Level for Road FL 155H-G - Geo Fennel
- Includes 1 laser signal receiver FR 45.
- Working radius with FR 45 receiver: 1,200m.
- Adjustable tilt on X/Y axis: ± 10°.
- Multi-information LCD display.
- Remote with multi-information display.
- Laser beam color: red.
- Dust/water protection rating: IP 65.
- Automatic horizontal leveling.
- Remote control via RF 80m.
- Rotation speed 500, 800 rpm.
- Audio alert when exceeding self-leveling range.
- Suitable for indoor and outdoor use.
- Uses Li-Ion rechargeable battery.
Introduction
Rotary Laser Level for Road FL 155H-G is a precision industrial measuring device manufactured to Geo Fennel, Germany standards with origin from China. It is specially designed for road construction, site leveling both indoors and outdoors with high durability and good weather resistance.
With a working radius up to 1,200m when used with the included FR 45 receiver, the FL 155H-G enhances work efficiency, saving time and effort for construction engineers and contractors. It features automatic horizontal leveling, flexible X/Y axis tilt adjustment, plus a multi-information LCD screen and remote control for quick and accurate operation.
Features
- Automatic horizontal leveling for fast and precise operation.
- Adjustable X/Y axis tilt ± 10°, numeric display on LCD.
- High-brightness red laser beam, easily visible under various lighting conditions.
- Remote control via RF with up to 80m range, multi-information display for convenient operation.
- Dust and water protection rating IP 65, ensuring stable outdoor performance under harsh weather.
- Flexible rotation speeds of 500 and 800 rpm suitable for different job requirements.
- Audio alert when exceeding self-leveling range for timely user adjustment.
- Uses Li-Ion rechargeable battery with up to 30 hours working time, supports fast charging and car charging.
- Through-beam laser point suitable for accurate and efficient measurements.
- Anti-vibration, wind resistance, and safety functions (V-W-S) ensure stable operation outdoors.
Applications

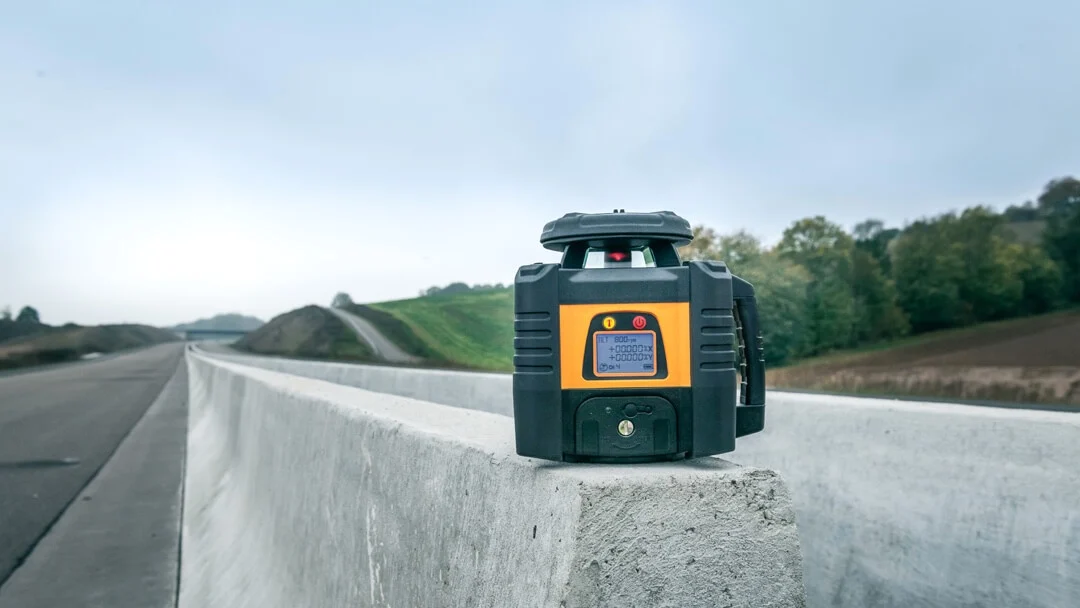

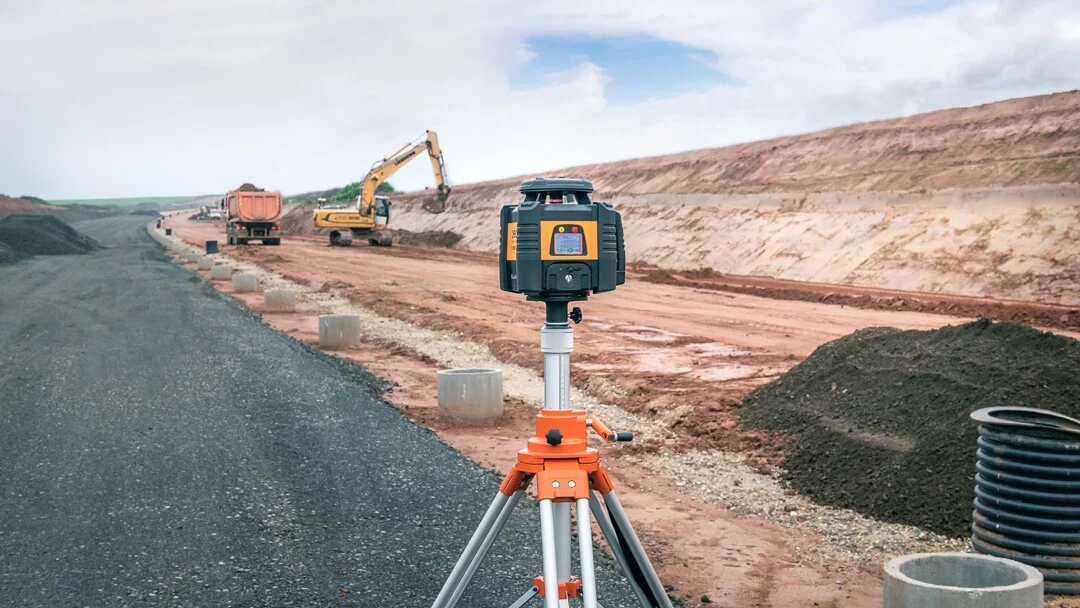

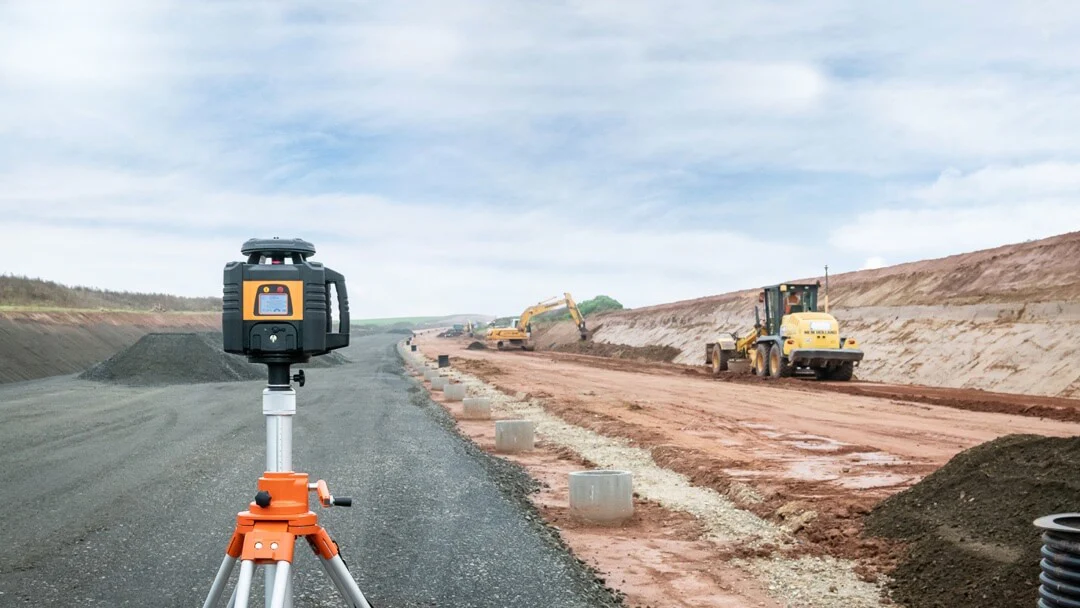

The FL 155H-G rotary laser level is widely used in construction, site leveling, roadworks, infrastructure projects, and any project requiring precise leveling and tilt control. It is suitable for both indoor and outdoor tasks thanks to dust and water resistance and stable performance in various environments.
With its large working radius and integrated FR 45 receiver, the FL 155H-G allows users to easily control and measure large areas, saving time and improving construction efficiency. Automatic leveling and audio tilt alerts ensure maximum accuracy throughout operation.
Technical Specifications - Rotary Laser Level FL 155H-G Geo Fennel
- Self-leveling: horizontal plane
- Self-leveling range: ± 6°
- Accuracy: ± 0.5 mm / 10 m
- Scanning radius without receiver: 60 m (depends on ambient brightness)
- Working radius with FR 45 receiver: 1,200 m
- Working radius with FR 77-MM receiver (optional): 600 m
- Remote control range: RF 80 m
- X/Y axis tilt adjustment: ± 10°
- Tilt display: numeric
- Through-beam laser point: Yes
- Tilt limit alert (TILT): Yes
- Anti-vibration, wind, safety function (V-W-S): Yes
- Rotation speed: 500, 800 rpm
- Power supply: Li-Ion rechargeable battery
- Battery runtime fully charged: 30 hours
- Dust/water protection rating: IP 65
- Laser diode: red
- Laser class: 2
- Audio alert on tilt limit exceed: Yes
- Operating temperature: -20°C to +50°C
- Weight: 2.2 kg

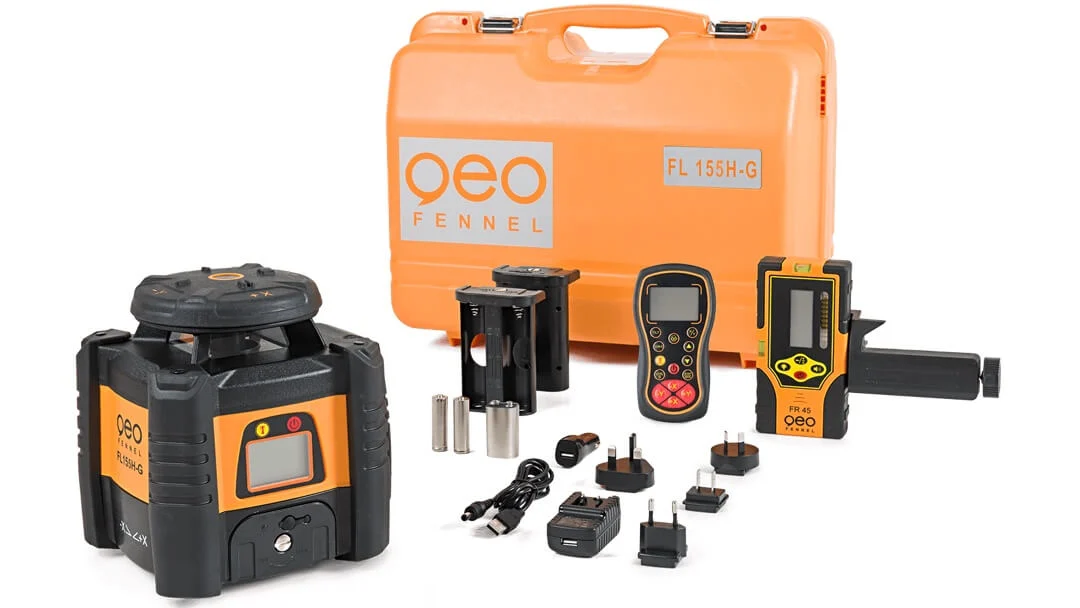

Package Contents
- 1 Geo Fennel, Germany genuine rotary laser FL 155H-G.
- 1 FR 45 laser signal receiver with staff clamp
- 1 remote control with multi-information display
- 1 Li-Ion rechargeable battery pack
- 1 220V/50Hz charger
- 1 car charger
- 1 USB charging cable
- 1 AA battery holder
- 1 user manual
- 1 carrying case for device and accessories
- 1 12-month warranty card from Le Quoc Equipment.
