Rotary Laser Receiver Distance Meter FR-DIST 30 - Geo Fennel

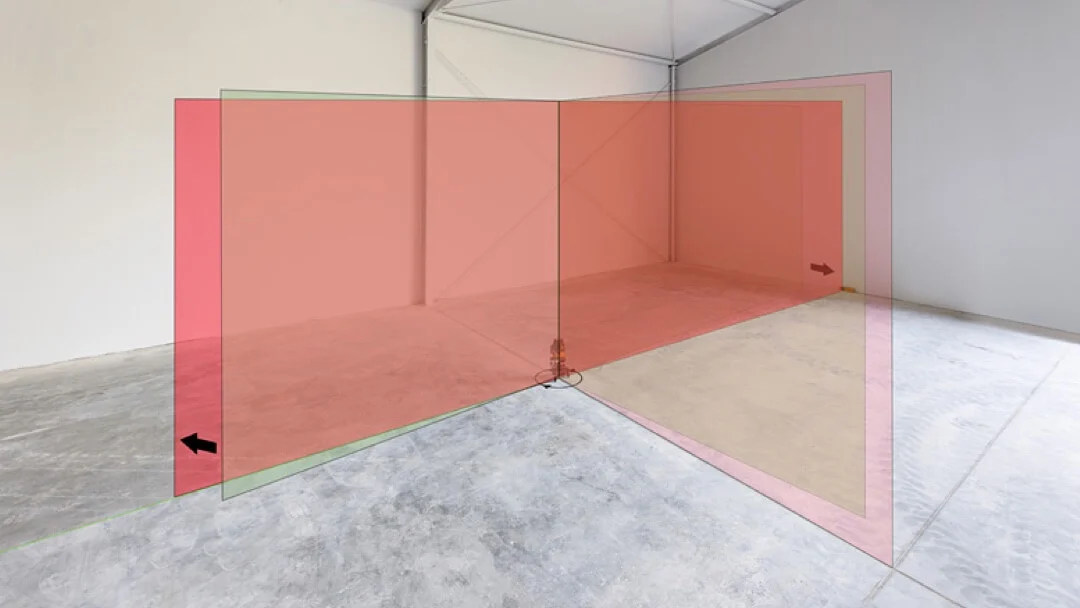

- Compatible with green and red rotary laser levels.
- Measures distance, area, volume, and right triangles (2 and 3 points).

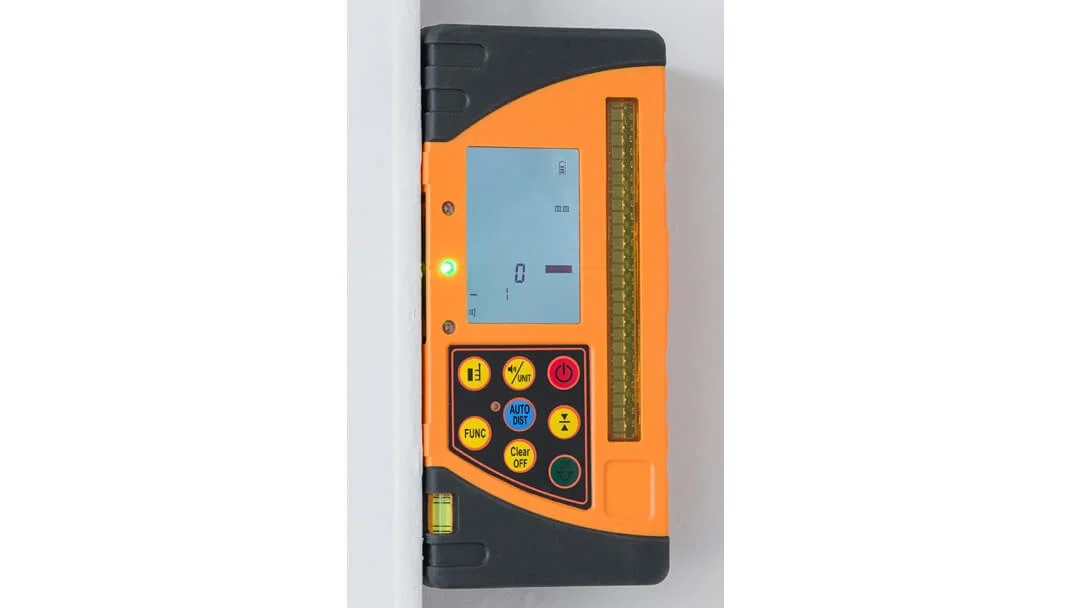

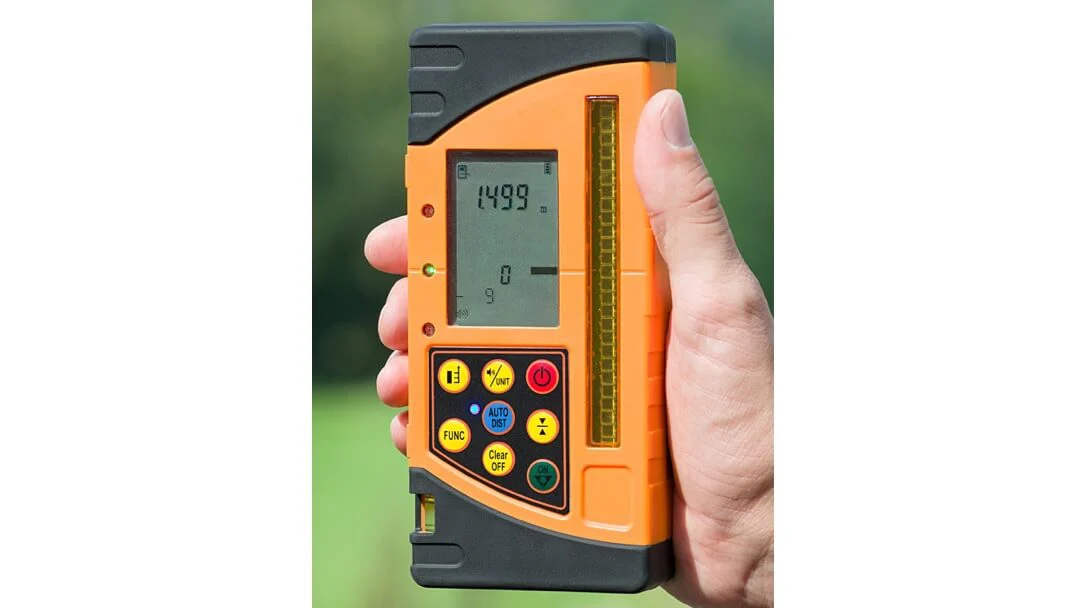

- Displays distance to the laser plane, unit in mm.

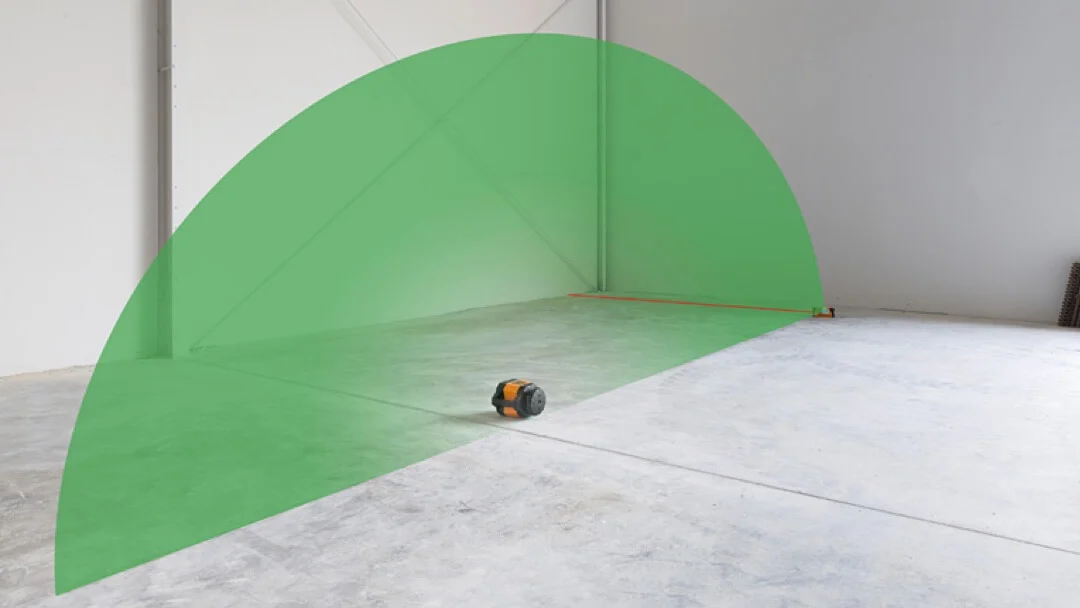

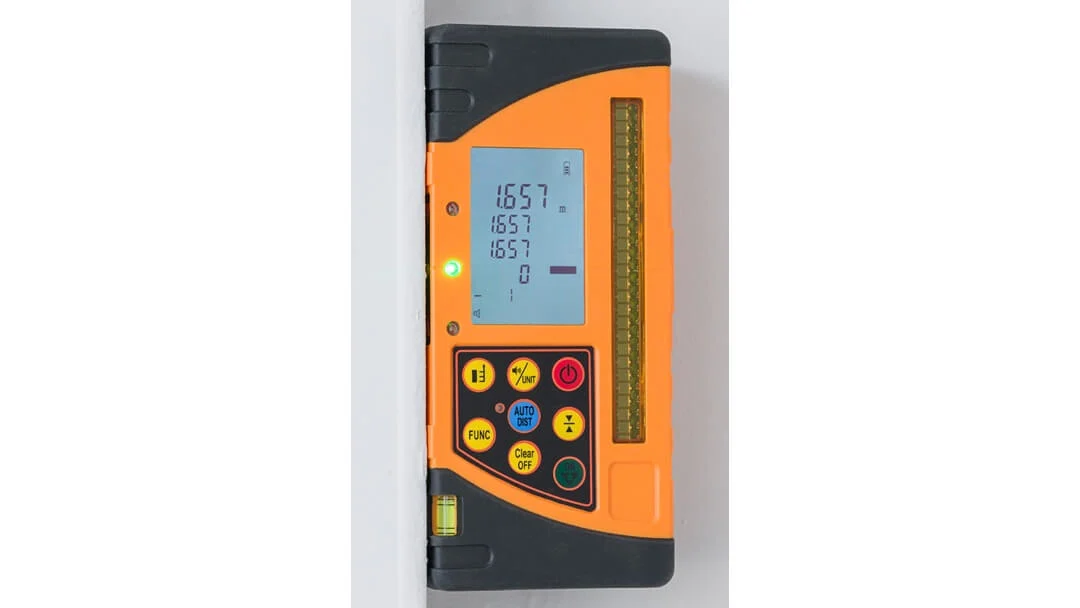

- Reports distance from laser plane to floor/wall.
- LCD screen.

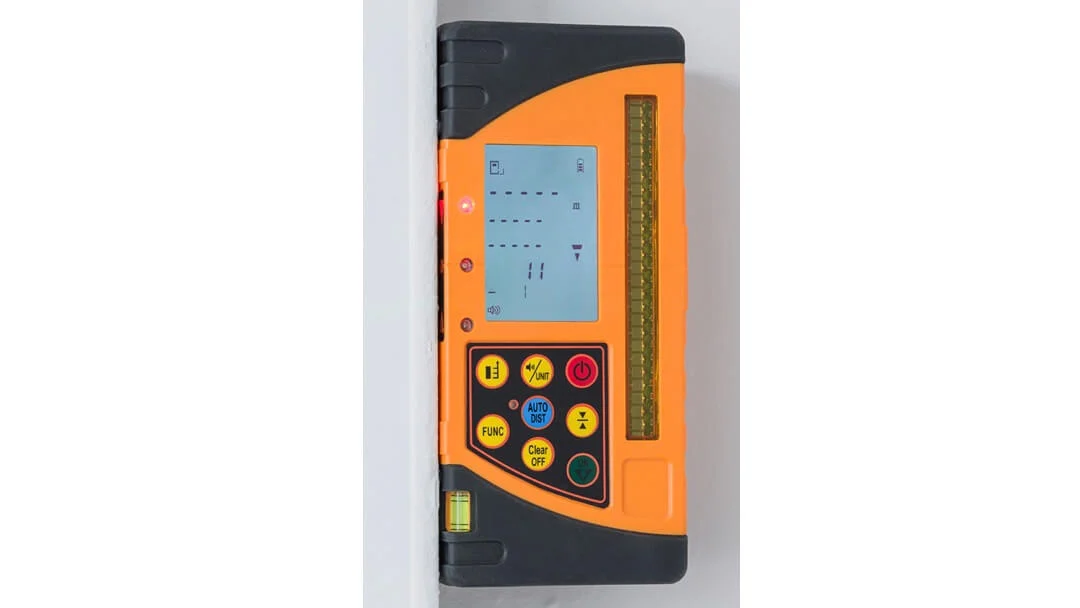

- LED indicators on front and side.
- Audible signal.
- 2 accuracy levels: fine/coarse.

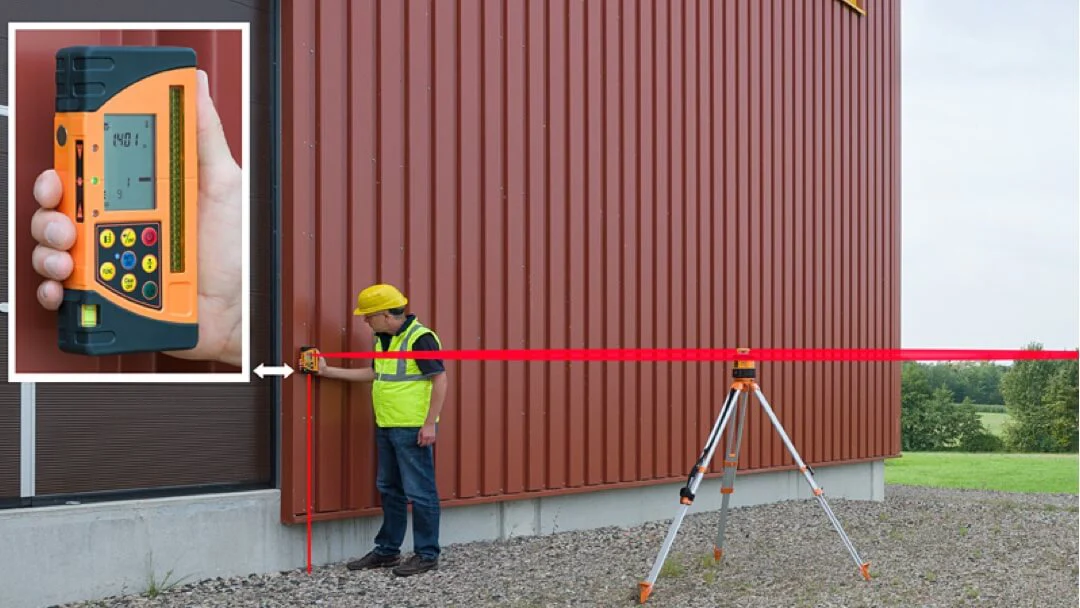

- Staff clamp for elevation measurement along the staff.
- Long and round spirit level.
- Magnets on top and side.
- Screen backlight.
- Auto power off when not in use.
- Shockproof rubber housing.
Introduction
Rotary Laser Receiver Distance Meter FR-DIST 30 by Geo Fennel is a specialized measuring device optimized for green and red rotary laser levels. This product accurately determines distance, area, volume, and right triangle measurements, meeting the needs of construction surveying and terrain mapping.
With a robust design and integrated advanced features such as an LCD screen, audible alerts, LED indicators, and high shock resistance, the FR-DIST 30 is a reliable choice for engineers and technicians requiring high precision and performance.
Features
- Compatible with green and red rotary laser levels, enhancing work flexibility.
- 100 mm long laser signal reception window for accurate and stable signal capture.
- LCD screen clearly displays distance, area, volume, and right triangle measurements.
- Front and side LED indicators facilitate easy signal detection.
- Audible alerts with frequency varying by distance to the detection point, can be turned on/off.
- Two accuracy levels: fine and coarse, allowing users to select based on job requirements.
- Integrated staff clamp for precise elevation measurement along the staff.
- Long and round spirit level integrated for device leveling during measurement.
- Magnets on top and side for secure attachment to metal surfaces.
- Shockproof rubber housing ensures durability and safety during use.
- Auto power off to save battery when not in use.
Applications

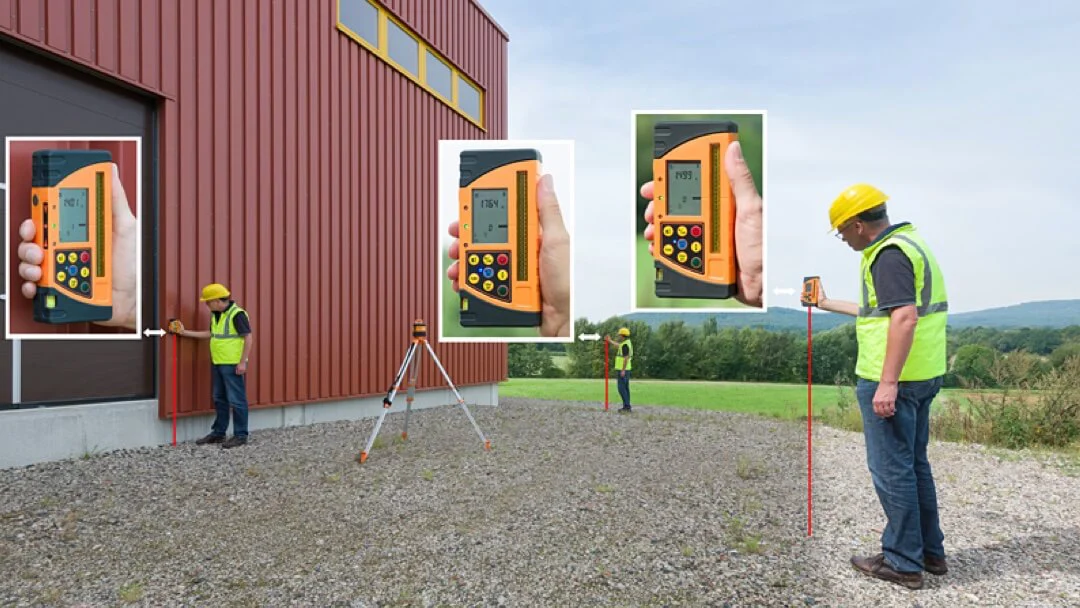

The FR-DIST 30 rotary laser receiver is widely used in construction, terrain surveying, infrastructure works, and technical measurements. It enables quick and accurate determination of distance, area, volume, and right triangle measurements, supporting site layout, elevation checks, and trench depth measurement when combined with excavators.
With stable operation under harsh conditions, IP65 dust and water resistance, and a robust design, the FR-DIST 30 is a valuable tool to enhance efficiency and accuracy in modern construction and surveying projects.
Technical Specifications - Rotary Laser Receiver Distance Meter FR-DIST 30 Geo Fennel
- Compatible lasers: green and red.
- Laser class: 2.
- Operating radius as receiver: 300 m.
- Distance measuring range: 50 m.
- Laser signal reception window length: 100 mm.
- Receiver accuracy: ±1 / ±5 / ±9 mm.
- Distance meter accuracy: ±2 mm.
- Measurement functions: distance (single or continuous), area, volume, right triangles with 2 and 3 points.
- Units: m / ft / inch.
- Audible alert on/off: yes.
- Reference points for distance measurement: base / laser plane (0 set) / device top.
- Dust/water resistance rating: IP 65.
- Display: front, with backlight.
- Magnets: top and side.
- LED indicators: front and side.
- Spirit levels: top and side.
- Battery indicator: 5 levels.
- Power supply: 3 AA batteries.
- Operating temperature for distance measurement: 0°C - +40°C.
- Operating temperature as receiver: -10°C - +50°C.
- Dimensions: 172 x 80 x 32 mm.
- Weight: 300 g.
Package Contents
- 1 rotary laser receiver FR-DIST 30 imported officially from Geo Fennel, Germany.
- 1 staff clamp for elevation measurement support.
- 3 AA batteries supplying power to the device.
- 1 detailed user manual.
- 1 12-month warranty card by Le Quoc Equipment.
