Outdoor Rotary Laser FL 510HV-G Tracking M - Geo Fennel
- Working radius with receiver FR 77-MM 800 m.
- Easy tracking function.
- Laser beam color red.

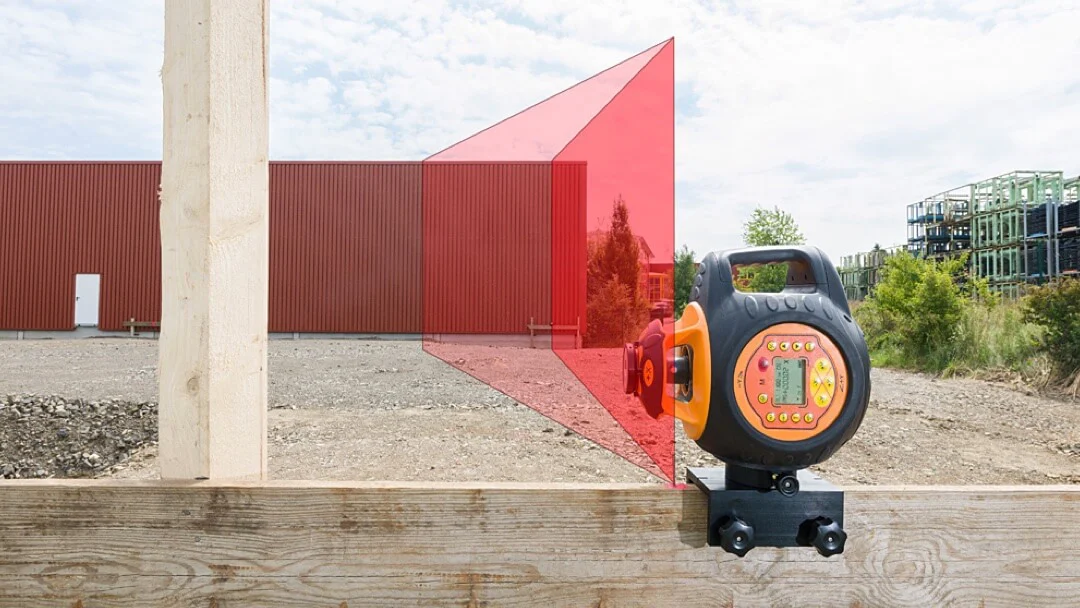

- Automatic horizontal and vertical leveling.
- X/Y tilt adjustment: ± 10°.
- Dust/water protection rating IP 66.
- 140 m tracking radius.
- Remote control range 100 m.
- Display of tilt angle and aperture.
- Auto laser off and sound alarm when exceeding self-leveling range - TILT.
- Shock, wind, safety protection (V-W-S).
- Li-Ion rechargeable battery.
- Laser point through floors.
- Includes long-range sighting scope for targeting.
Introduction

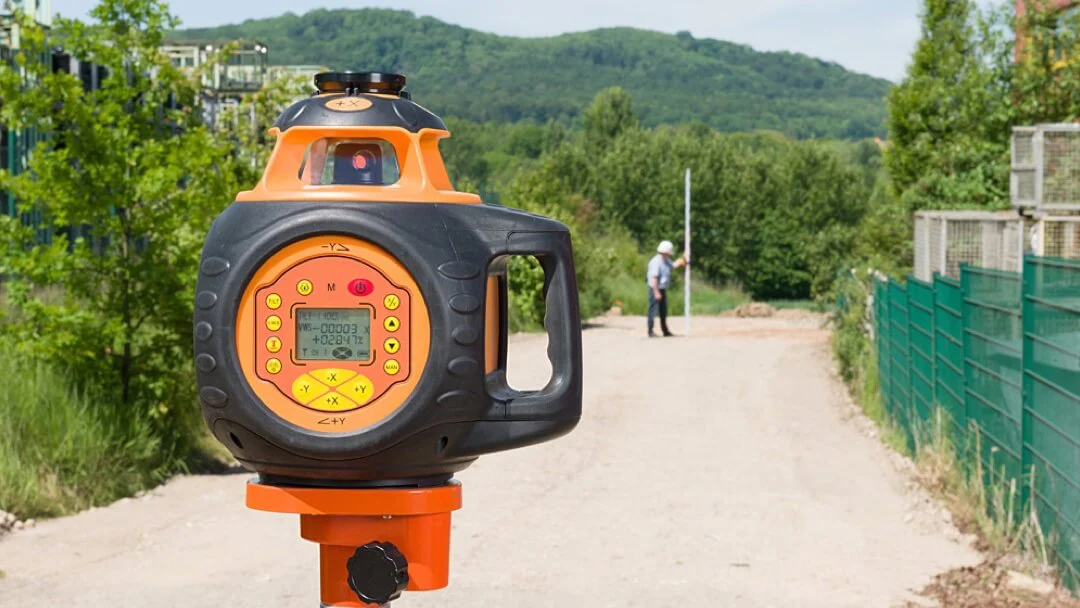

Outdoor Rotary Laser FL 510HV-G Tracking M from Geo Fennel, Germany is a high-end industrial measurement device suitable for outdoor construction projects requiring high accuracy and efficiency. The product features automatic horizontal and vertical leveling along with tracking functionality for fast and precise operation.
With a working radius up to 800 m when using the FR 77-MM receiver and rugged IP66 protection, the FL 510HV-G Tracking M rotary laser is an ideal choice for large and professional projects. The device is equipped with a Li-Ion rechargeable battery for long working hours, integrated remote control, and numerous advanced features to support users optimally.
Features
- Automatic dual-axis horizontal and vertical leveling within ±8°, enabling quick and accurate measurements.
- X/Y axis tilt adjustment ±10°, allowing laser plane setup as per job requirements.
- Easy tracking function with included FR 77-MM receiver.
- Class 2 red laser with PowerSwitch-Technology ensuring high brightness and safety.
- IP66 dust and water protection suitable for harsh environments like rain and dust.
- Shock and wind resistance with V-W-S function to maintain laser stability.
- Auto laser shutoff and sound alarm when exceeding self-leveling range (TILT) for safety and accuracy.

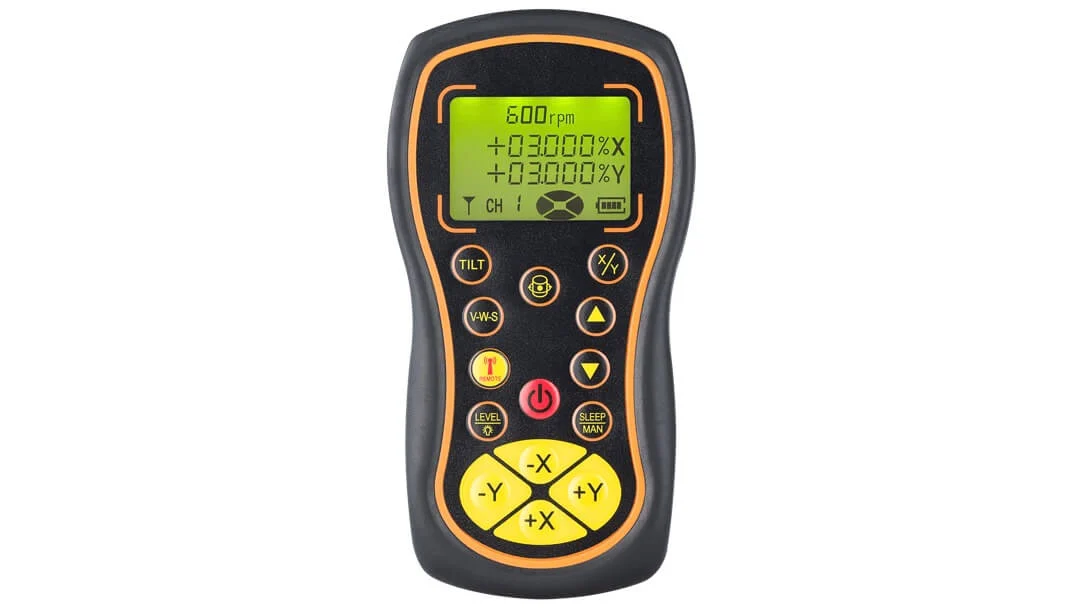

- Two-way remote control with up to 100 m range for flexible operation.
- Laser point through floors for precise positioning on ceilings or high surfaces.
- Integrated long-range sighting scope for easier targeting.
Applications
The FL 510HV-G Tracking M rotary laser is widely used in various surveying and construction fields, including:
- Land leveling and construction of civil and industrial projects.
- Setting elevations and reference planes for outdoor construction.
- Mapping, terrain surveying, tilt and balance checks of structures.
- Interior works requiring high accuracy with self-leveling and tilt adjustment.
- Large infrastructure projects such as roads, bridges, and drainage systems.
Technical Specifications - Outdoor Rotary Laser FL 510HV-G Tracking M Geo Fennel
- Self-leveling range: ±8° (horizontal and vertical).
- Horizontal accuracy: ±0.5 mm/10 m.
- Vertical accuracy: ±1 mm/10 m.
- Working radius without receiver: 40 m (dependent on ambient brightness).
- Working radius with FR 77-MM receiver: 800 m.
- Tracking radius: 140 m.
- Remote IR communication radius: 100 m.
- Horizontal axis X/Y tilt adjustment: ±10%.
- Rotation speed: 300, 600, 1,100 rpm.
- Manual tilt mode (TILT): available.
- Remote channels: 8.
- Multi-info display on remote: yes.
- V-W-S function (shock, wind, safety): yes.
- Power source: Li-Ion rechargeable battery, approx. 40 hours working time.
- Dust/water protection rating: IP66.
- Laser diode: red, class 2 laser.
- Operating temperature: -10°C to +50°C.

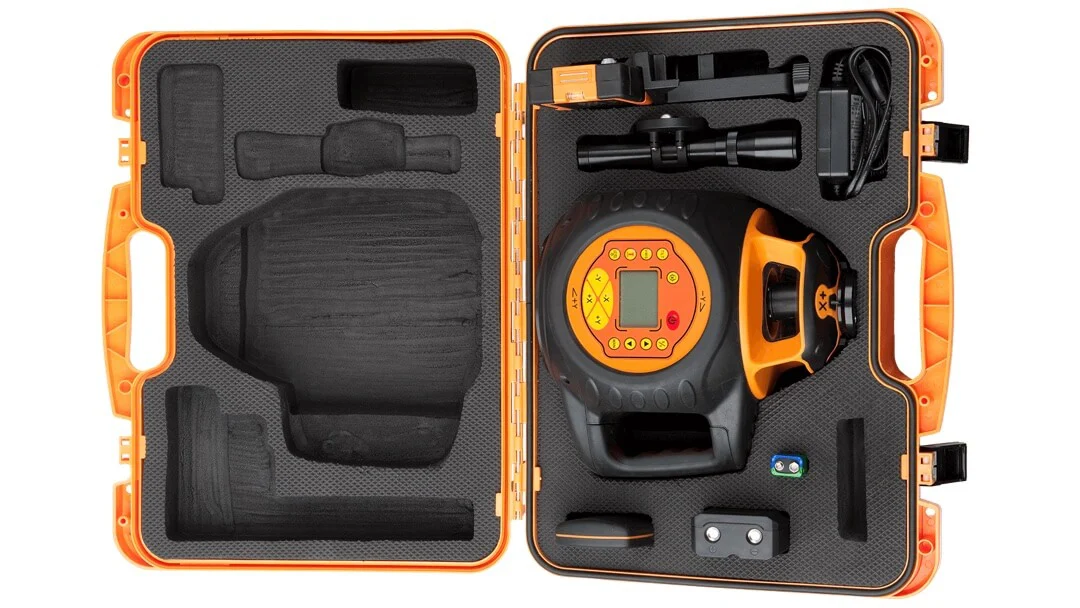

Package Contents
- 1 unit of FL 510HV-G Tracking M genuine Geo Fennel, Germany.
- 1 laser receiver FR 77-MM with staff clamp.
- 1 two-way remote control.
- 1 Li-Ion rechargeable battery pack.
- 1 smart battery charger.
- 1 AA battery compartment.
- 1 integrated floor mount base.
- 1 spotting scope.
- 1 user manual.
- 1 carrying case for device and accessories.
- 1 12-month warranty card from Le Quoc Equipment.
