Handheld Pressure Meter 840065 - Sper Scientific

SKU: 840065 Brand: Sper Scientific, USA Origin: Taiwan

Rating: No reviews yet

Measures pressure of liquids and gases.
Measures high pressure.
Wide range: 0 ~ 725 PSI.
8 units: BAR - PSI - Kg cm² - mm Hg - in Hg - m H2O - in H₂O - atm.
Detachable, replaceable sensor.
Sensor thread: 1/4" NPT (18 threads/in).
RS232 communication port.

10.540.800đ

Backorder Stock: 0

Quantity

Introduction

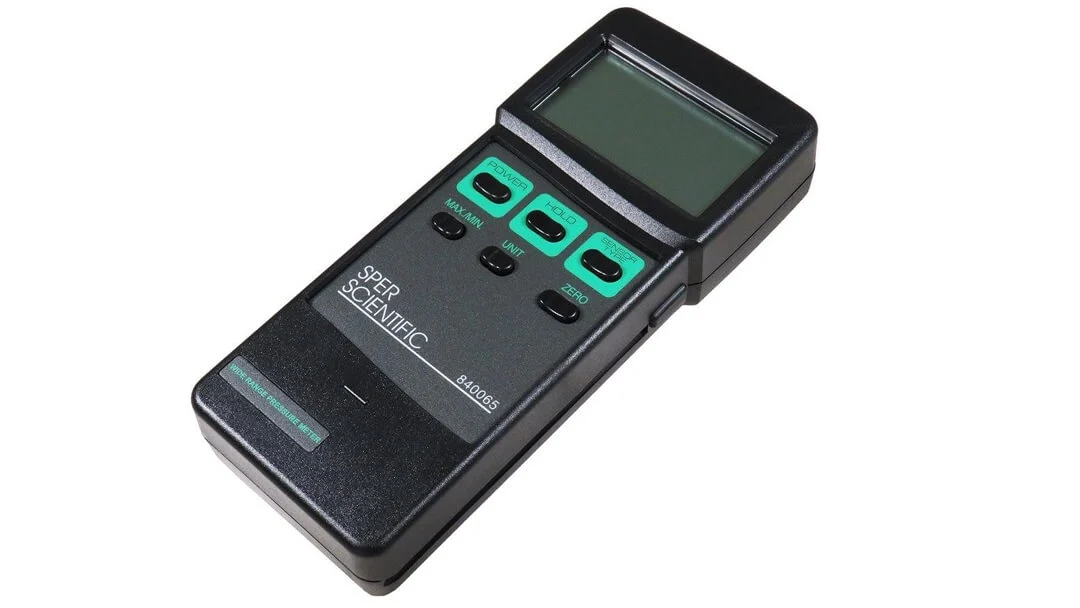

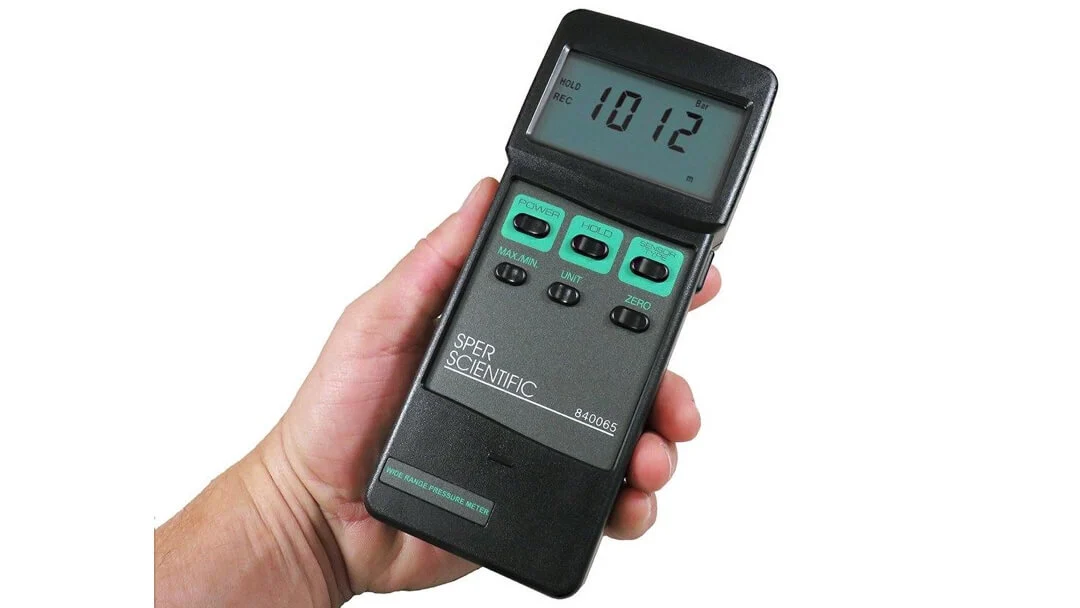

Handheld Pressure Meter - 840065 - Sper Scientific is a modern, compact, and convenient pressure measuring device, officially imported from Sper Scientific, USA. The product meets the demand for measuring liquid and gas pressure in various industries with high accuracy and a wide range up to 725 PSI. The device is robustly designed, easy to carry, and suitable for use in diverse environments.

Equipped with a detachable, replaceable sensor and integrated RS232 communication port, this device allows users to easily connect and store data for process control and analysis. It is an ideal handheld pressure measuring tool for engineers and technicians in fields such as mechanical, automotive, HVAC, food processing, and many other industries.

Features

Wide measurement range: Measures pressure from 0 to 725 PSI, suitable for various technical applications.
Multiple units supported: Supports 8 units including BAR, PSI, Kg/cm², mm Hg, in Hg, m H₂O, in H₂O and atm, allowing users to select according to job requirements.
Measures liquid and gas pressure: Usable in many environments such as compressed air, hydraulics, steam, air, etc.
Detachable pressure sensor: Sensor can be removed and replaced, using standard 1/4" NPT thread (18 threads/inch) for flexible use.

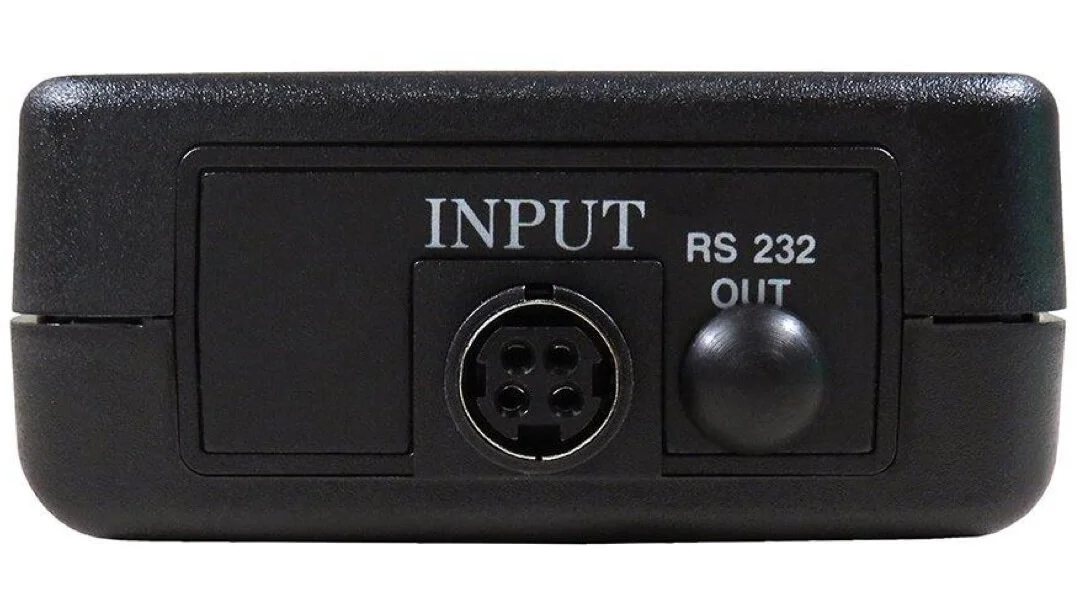

RS232 communication port: Enables connection to computers for data transfer, storage, and precise analysis.
Utility functions: Max/min value memory, hold measurement, auto power off to save battery.
Compact and durable design: Dimensions 178 × 76 × 38 mm, weight 369 g, easy to carry and use in various environments.

List of optional probes available for purchase

840066: 2 Bar | 29 PSI | 2.040 Kg cm2 | 1500 mm Hg | 1.974 atm
840067: 5 Bar | 72.5 PSI | 5.095 Kg cm2 | 3750 mm Hg | 4.935 atm
840068: 10 Bar | 145 PSI | 10.19 Kg cm2 | 7500 mm Hg | 9.87 atm
840069: 20 Bar | 190 PSI | 20.40 Kg cm2 | 15000 mm Hg | 19.74 atm
840070: 50 Bar | 725 PSI | 50.95 Kg cm2 | 37500 mm Hg | 49.35 atm

Applications

The handheld pressure meter 840065 from Sper Scientific is widely used in various fields:

Measuring compressed air pressure in pneumatic systems.
Checking vacuum and pressure in automotive engines.
Monitoring and controlling superheat in refrigeration and air conditioning systems.
Controlling hydraulic servo systems.
Applications in food processing industry to ensure safety and production efficiency.
Measuring pressure in other industrial liquid and gas systems.

Technical Specifications - Handheld Pressure Meter 840065 Sper Scientific

Pressure range: 0 ~ 725 PSI (equivalent to approx. 0 ~ 50 atm).
Units of measure: BAR, PSI, Kg/cm², mm Hg, in Hg, m H₂O, in H₂O, atm.
Accuracy: ± (0.5% + 1 digit).
Sensor: Detachable, 1/4" NPT thread (18 threads/inch), removable and replaceable.
Communication port: RS232.
Dimensions: 178 × 76 × 38 mm.
Weight: 369 g.
Power supply: 9V battery.
Special functions: Min/Max value memory, hold measurement, auto power off.

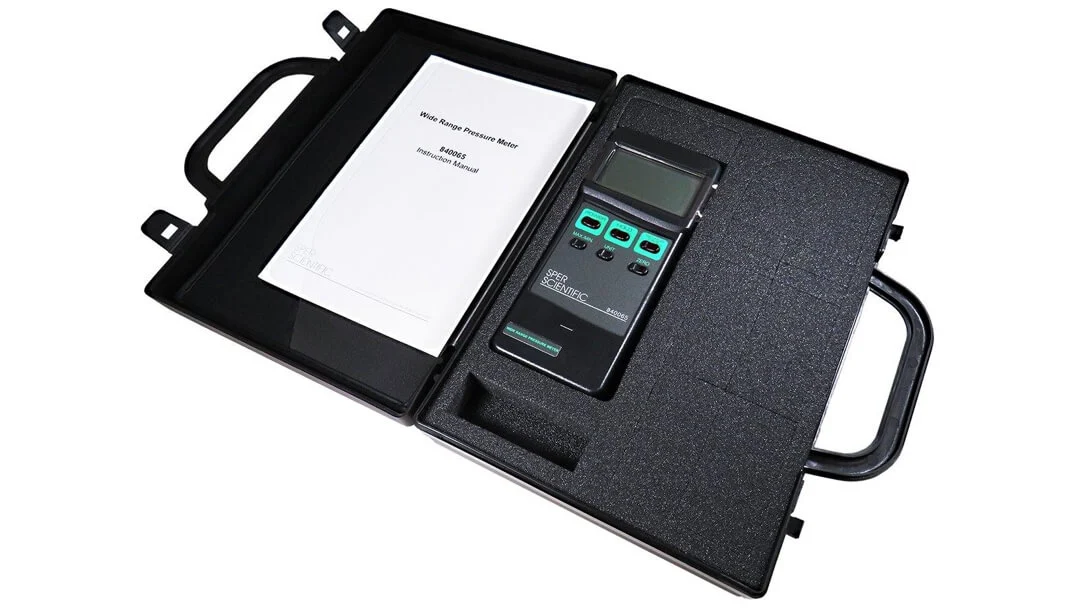

Package Contents

1 genuine Sper Scientific USA handheld pressure meter 840065.
1 shockproof padded carrying case for device and accessories.
1 9V battery included, ready to use.
1 detailed user manual.
1 official 6-month warranty card from Le Quoc Equipment.

Warranty 6 months
