Vacuum Pressure Gauge 840064 - Sper Scientific
- Measures absolute vacuum pressure.
- Measures gas pressure.
- Measures liquid pressure.
- Units: mbar - Kpa - Pa - torr - mm Hg - micron - inch Hg - psi.
- Applications: hospital laboratories, crystal cultivation, solvent recovery, distillation and rotary evaporation, HVAC, automotive, and other industrial uses.
- Measures: liquids, air, oil, and gases.
- Features: min/max, data hold, low battery indicator, and auto power off.
Introduction
Vacuum Pressure Gauge 840064 - Sper Scientific is a specialized handheld device designed to measure absolute vacuum pressure with high accuracy. The product is officially imported from the USA and manufactured in Taiwan, ensuring quality and durability for industrial and laboratory environments.
The meter can measure gas and liquid pressure with flexible units such as mbar, Kpa, Pa, torr, mm Hg, micron, inch Hg, and psi, suitable for various applications.
The device features a large display, useful functions like min/max value storage, data hold, low battery alert, and auto power off to facilitate easy operation and energy saving.
Features
- Measures absolute vacuum pressure with ±1% full scale accuracy, ensuring high reliability in measurements.
- Multiple units: mbar, Kpa, Pa, torr, mm Hg, micron, inch Hg, psi for versatile application support.

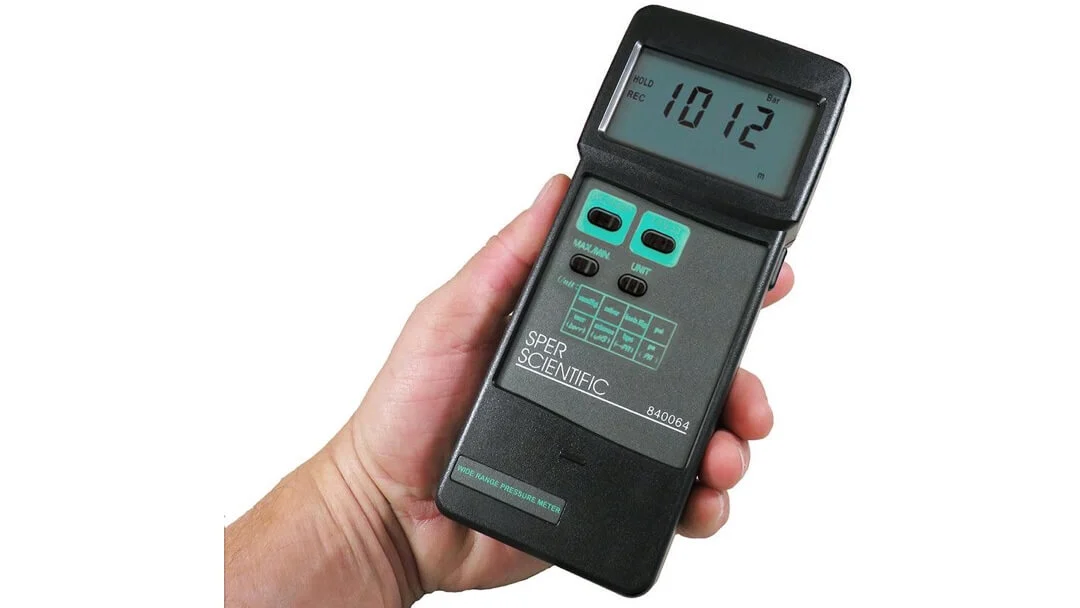

- Large LCD screen clearly shows measurement parameters for easy reading and monitoring.
- Min/max function records the smallest and largest values during use.
- Data hold function allows users to freeze the measurement for detailed analysis.
- Low battery warning and auto power off help conserve energy and maintain stable operation.
- Detachable sensor head with ¼ PS connection, suitable for measuring liquid, air, oil, and gas pressure.
- Durable design, device weight 220g and sensor head 170g, easy to carry and use.
Applications
Application content is being updated.
Technical Specifications - Vacuum Pressure Gauge 840064 Sper Scientific
- Absolute vacuum pressure measurement range:
- mbar: 0 ~ 1,500 (resolution 1)
- Kpa: 0 ~ 150.0 (resolution 0.1)
- Pa: 0 ~ 150,000 (resolution 100)
- torr: 0 ~ 1,125 (resolution 1)
- mm Hg: 0 ~ 1,125 (resolution 1)
- micron: 0 ~ 1,125,000 (resolution 1,000)
- inch Hg: 0 ~ 44.30 (resolution 0.02)
- psi: 0 ~ 21.75 (resolution 0.01)
- Accuracy: ±1% full scale (at 23 ± 5°C), including linearity, hysteresis, and repeatability.
- Sensor cable length: 1,250 mm (49 inches).
- Device dimensions: 180 × 75 × 35 mm (7" × 3" × 1½").
- Device weight: 220 g (8 oz).
- Sensor head weight: 170 g (6 oz).
- Additional features: min/max, data hold, low battery indicator, auto power off.
- Power supply: 1 x 9V battery.

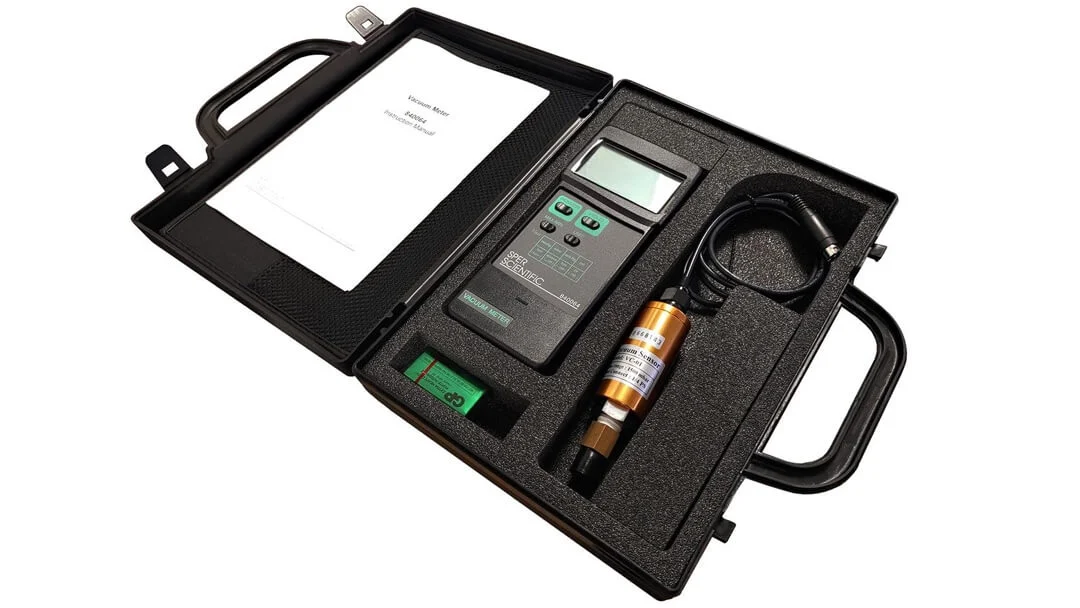

Package Contents
- 1 handheld meter 840064 genuine Sper Scientific, USA.
- 1 pressure sensor probe with signal cable and ¼ PS connector.
- 1 carrying case with shockproof padding for device protection.
- 1 9V battery for the meter.
- 1 detailed user manual.
- 1 official 6-month warranty card from Le Quoc Equipment.
