Datalog 850023 Anemometer and Temperature Meter - Sper Scientific
- Measures wind speed: 0.4 ~ 30 m/s.
- Fan sensor.
- K and J type temperature measurement (optional).
- SD card data logging.
- Excel format report generation.
- Measurement info: wind speed and temperature, date, time.
- Functions: Min/Max/Hold/battery alert.
- LCD display with backlight.
Introduction
Datalog 850023 Anemometer and Temperature Meter by Sper Scientific (USA) is a specialized industrial measuring device supporting accurate wind speed and temperature measurements over a wide range, suitable for various technical and environmental applications.
The device is equipped with a fan sensor and convenient SD card data storage, allowing users to easily manage and analyze data via Excel reports. The LCD screen with backlight ensures clear visibility even in low light conditions.
This is an ideal choice for engineers and technicians requiring a reliable, easy-to-use, and highly portable wind speed and temperature measuring instrument for industrial and outdoor working environments.
Features
- Measures wind speed from 0.4 ~ 30 m/s with a fan sensor.
- K and J type temperature measurement (optional temperature sensors) with wide range and high accuracy.
- Data stored on SD card, easily replaceable or downloadable to a computer for processing.
- Data reports formatted as Excel spreadsheets, no additional software needed.
- Min/Max/Hold functions to monitor extreme values and hold readings on screen.
- LCD display with backlight for good visibility in low light environments.
- Battery status indicator and auto power-off to save energy.

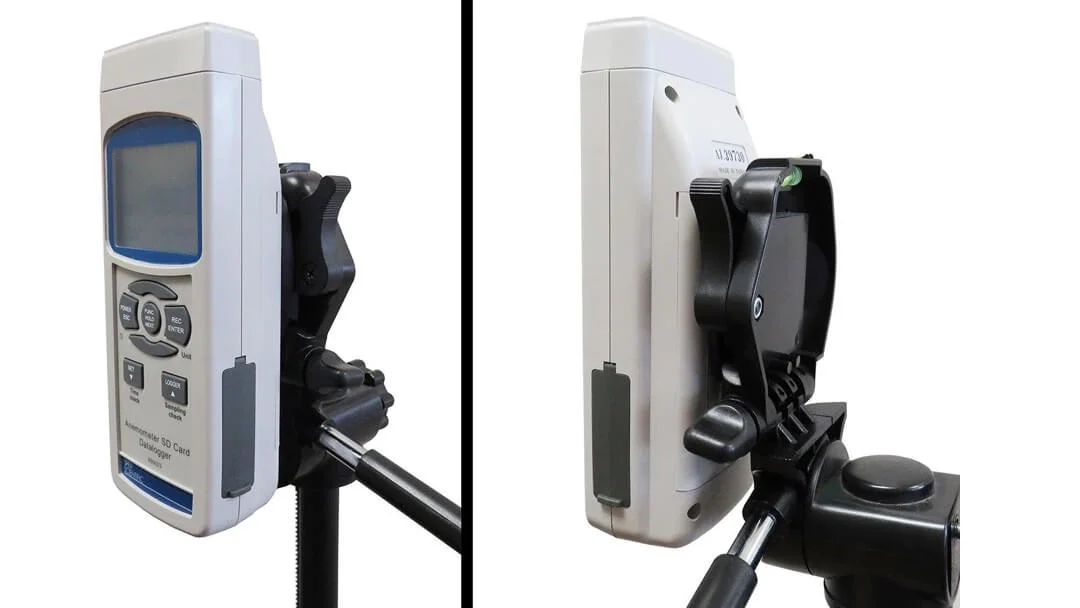

- Compact design with ¼” threaded hole for mounting on a tripod during measurements.
Applications
- Inspection and monitoring of HVAC and ventilation systems.
- Wind speed measurement in meteorological and environmental applications.
- Checking airflow in ducts and industrial systems.
- Temperature monitoring in high temperature applications using K or J type sensors.
- Environmental data research and analysis with convenient data storage and report export features.
Specifications - Datalog 850023 Anemometer and Temperature Meter Sper Scientific
Wind Speed Measurement
- Range: 0.4 ~ 30 m/s | 0.9 ~ 78.3 MPH | 1.4 ~ 126 km/h | 0.8 ~ 68 Knots | 79 ~ 6890 ft/min.
- Resolution: 0.1 (m/s, mph, km/h, knots) / 1 (ft/min).
- Accuracy: ±(2% reading + 0.2 m/s) and equivalent units.
K Type Temperature Measurement
- Range: -50 to +1,300ºC (-58 to 2372ºF).
- Resolution: 0.1ºC/ºF.
- Accuracy: ±(0.4% full scale + 1ºC) or ±(0.4% full scale + 1.8ºF).
J Type Temperature Measurement
- Range: -50 to +1,200ºC (-58 to 2192ºF).
- Resolution: 0.1ºC/ºF.
- Accuracy: ±(0.4% full scale + 1ºC) or ±(0.4% full scale + 1.8ºF).

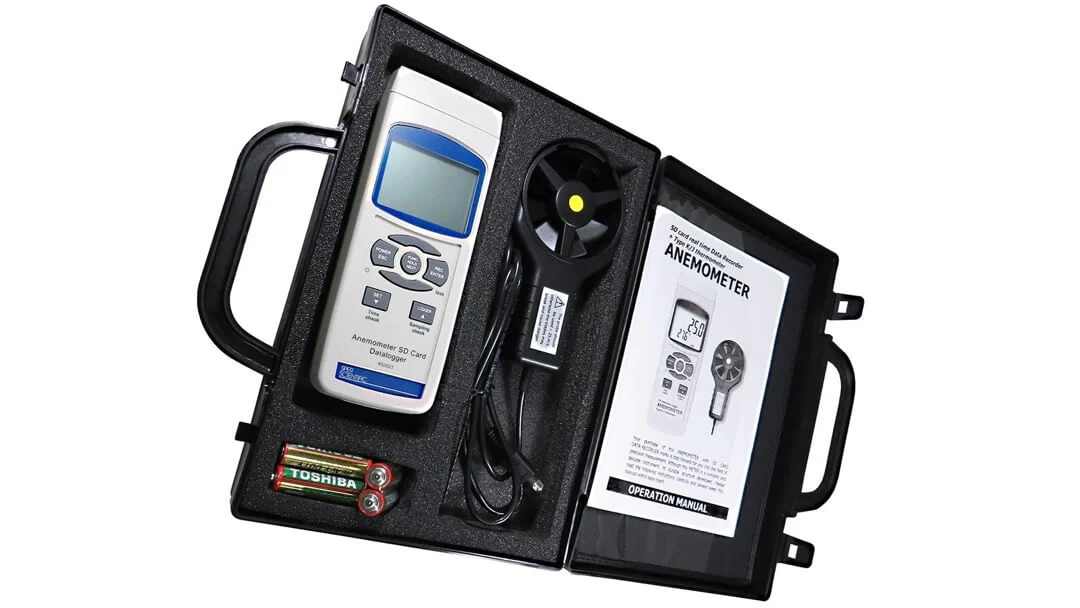

Package Contents
- 1 anemometer 850023 imported genuine Sper Scientific, USA.
- 1 fan sensor.
- 6 AA batteries.
- 1 SD card.
- 1 user manual.
- 1 carrying case for the device and accessories.
- 1 official 12-month warranty card from Le Quoc Equipment.
