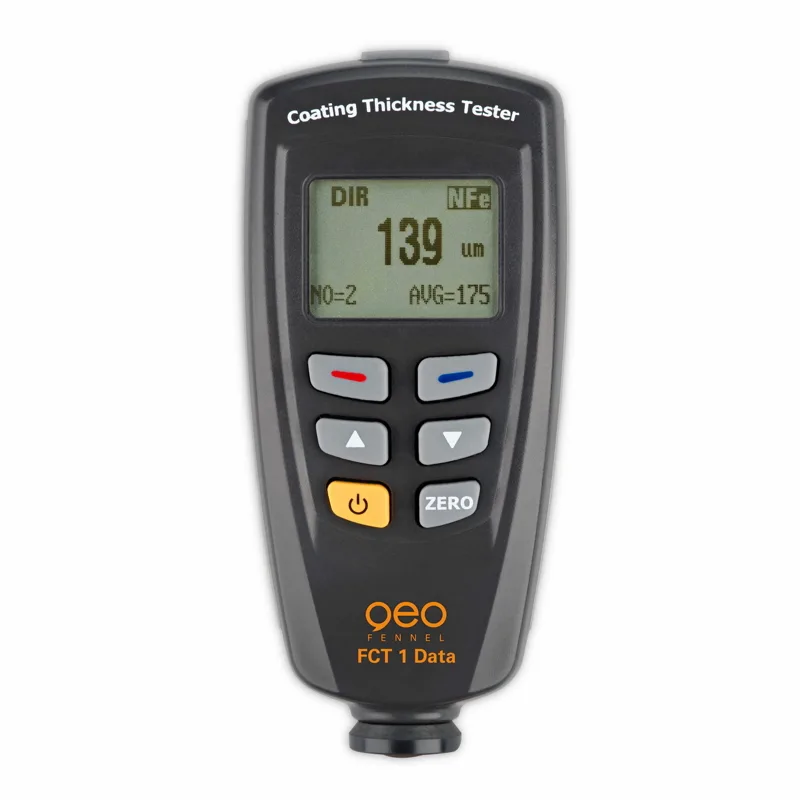

FCT 1 Data Coating Thickness Gauge - Geo Fennel
- Measures dry paint thickness on metals (ferrous and non-ferrous).
- Measures galvanized coating thickness.
- Measures powder coating thickness.
- Measuring range: 0 ~ 1,250 µm.
- Integrated probe.
- User calibration for accuracy adjustment.
Introduction
The FCT 1 Data Coating Thickness Gauge is a professional measuring device imported directly from Geo Fennel, Germany, designed specifically for measuring dry paint, galvanizing, and powder coating thickness on ferrous and non-ferrous metals. The device features advanced dual sensor technology, automatically identifying the substrate material to deliver fast and accurate measurements.
A key highlight of the FCT 1 Data is its large data storage capacity and direct USB connection to computers, supporting data export in Excel or PDF formats, making it highly convenient for quality management and inspection in industries such as shipbuilding, automotive, construction, and powder coating.
The gauge is compact and user-friendly with flexible measuring modes, allowing users to self-calibrate for accuracy to ensure consistently high-standard results.
Introduction Video
Features
- Dual sensor: Automatically identifies ferrous or non-ferrous substrates for accurate measurement without manual switching.
- Built-in memory: Stores up to 320 measurements, divided into 80 readings per group, supporting effective data management.
- USB connectivity: Exports data to computers via dedicated software, supporting Excel and PDF report generation.
- High accuracy: Approximate error ±1%, meeting strict industry calibration standards.

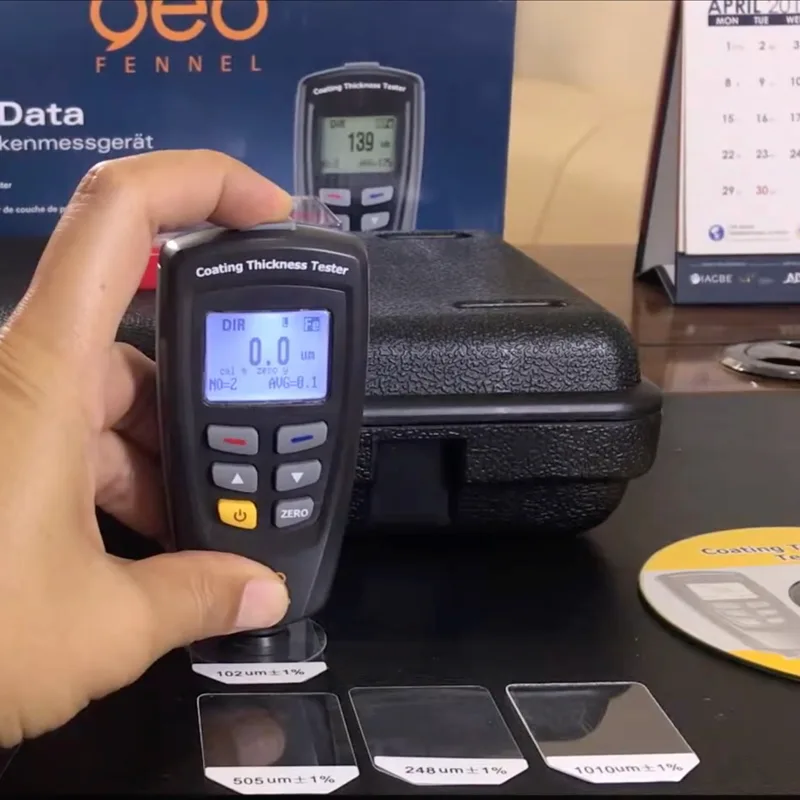

- Easy calibration: Users can self-calibrate accuracy based on zero and actual thickness standards.
- Compact design with integrated probe: Convenient for measuring on complex surfaces.
- Power saving: Auto power-off when idle, uses easily replaceable AAA batteries.
Applications
The FCT 1 Data coating thickness gauge is widely used in:
- Inspecting powder coating and galvanizing thickness in automotive manufacturing and repair.
- Measuring corrosion protection coatings in shipbuilding and oil & gas industries.
- Evaluating fireproof paint thickness on steel structures in construction.
- Quality control of coatings on equipment and products in painting workshops.
- Used in manufacturing steel frame buildings, oil pipelines, lighting poles, and various other industries.
Technical Specifications - FCT 1 Data Coating Thickness Gauge Geo Fennel
Below is the technical specification table for easy comparison and selection:
| Technical Properties | Specification Details |
| Measuring Range | 0 ~ 1,250 µm (0 ~ 50 mil) - Wide measuring range up to 1250 µm, suitable for thin powder coatings and thick hot-dip galvanized layers. |
| Resolution | 0.1 µm |
| Probe | Dual (F & NF) |
| Memory | Integrated (Data Logging) |
| Interface | USB (includes data export software) |
| Units | µm, mil |
| Power Supply | AAA 1.5V batteries (easy to replace) |
| Operating Temperature | 0°C – +40°C / (32°F – 104°F) |
| Operating Humidity | 10% – 90% |
| Weight | 110g |
| Dimensions | 113.5 x 54 x 27 mm |
Ferrous Substrate | : |
| Measuring Range | 0 ~ 1,250 µm / 0 ~ 49.21 mils |
| Accuracy | 0 ~ 850 µm (±3% + 1 µm). 850 ~ 1250 µm (±5%). 0 ~ 33.46 mils (±3% + 0.039 mils). 33.46 ~ 49.21 mils (±5%). |
| Step Size | 0 ~ 50 µm (0.1 µm). 50 ~ 850 µm (1 µm). 850 ~ 1,250 µm (0.01 mm). 0 ~ 1,968 mils (0.001 mils). 1,968 ~ 33.46 mils (0.01 mils). 33.46 ~ 49.21 mils (0.1 mils). |
| Substrate Curvature and Thickness | Minimum radius of curvature: 1.5 mm. Minimum measuring diameter: Φ7 mm. Minimum substrate thickness: 0.5 mm. |
| Measurement Principle | Magnetic induction |
Non-Ferrous Substrate (Colored Metals) | : |
| Measuring Range | 0 ~ 1,250 µm / 0 ~ 49.21 mils |
| Accuracy | 0 ~ 850 µm (±3% + 1.5 µm). 850 ~ 1,250 µm (±5%). 0 ~ 33.46 mils (±3% + 0.059 mils). 33.46 ~ 49.21 mils (±5%). |
| Step Size | 0 ~ 50 µm (0.1 µm). 50 ~ 850 µm (1 µm). 850 ~ 1250 µm (0.01 mm). 0 ~ 1,968 mils (0.001 mils). 1,968 ~ 33.46 mils (0.01 mils). 33.46 ~ 49.21 mils (0.1 mils). |
| Substrate Curvature and Thickness | Minimum radius of curvature: 3 mm. Minimum measuring diameter: Φ5 mm. Minimum substrate thickness: 0.3 mm. |
| Measurement Principle | Ultrasound |
User Guide Video

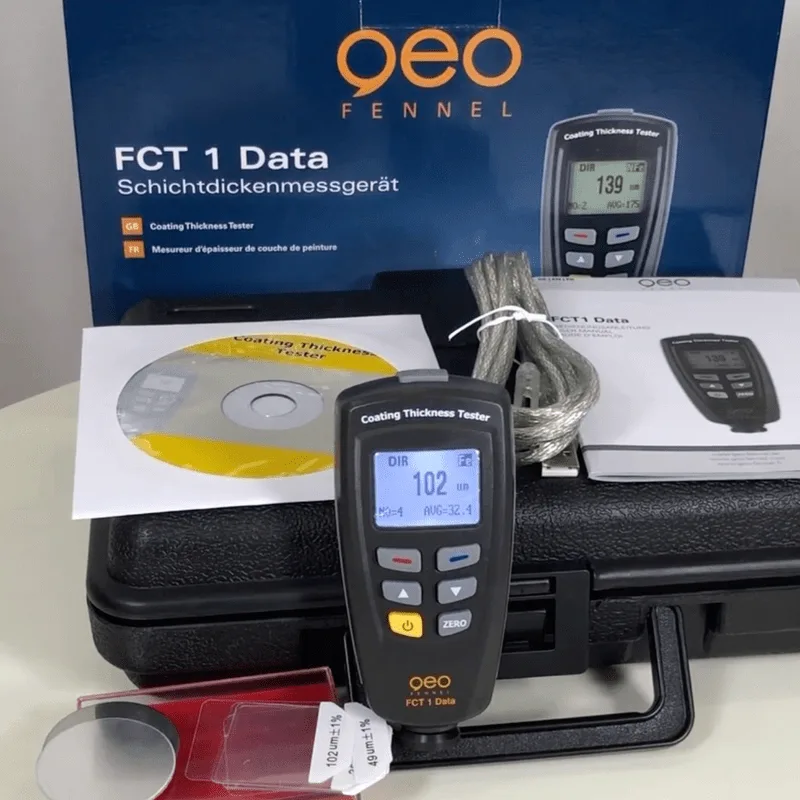

Package Contents
- 1 original Geo Fennel FCT 1 Data coating thickness gauge.
- 2 AAA 1.5V batteries.
- 1 USB cable for computer connection.
- 1 driver software CD for computer interface.
- 5 plastic calibration thickness standards.
- 1 non-ferrous metal calibration sample (aluminum).
- 1 ferrous metal calibration sample (iron).
- 1 carrying case for device and accessories.
- 1 detailed user manual.
- 1 12-month official warranty card from Le Quoc Equipment.
