Handheld Infrared Thermal Camera FTI 300 - Geo Fennel

SKU: FTI 300 Brand: Geo Fennel, Germany Origin: China
Rating: No reviews yet
  • Non-contact remote temperature measurement.
  • Measurement range: -50°C - 300°C.
  • Adjustable emissivity coefficient ε: 0.001 ~ 1.000.
  • Sharp thermal imaging output.
  • Storage on 8GB SD card.
  • Computer connection via USB.
  • Rechargeable battery powered.
23.868.000đ
In stock Stock: 3
Quantity

Introduction

Handheld Infrared Thermal Camera FTI 300 – Geo Fennel is a modern temperature measuring device that supports non-contact remote measurement, allowing users to easily check and analyze the temperature of objects in various industrial and maintenance applications.

The product is designed with advanced infrared sensor technology, providing clear and sharp thermal images along with large storage capacity and convenient computer connectivity. It is a useful tool for technicians and experts in temperature measurement.

FTI 300 is officially imported from the Geo Fennel brand, Germany, and manufactured in China, ensuring high quality and durability during use.

Introduction Video

Handheld Infrared Thermal Camera FTI 300 - Geo Fennel #1 Handheld Infrared Thermal Camera FTI 300 - Geo Fennel #1

Features

  • Non-contact remote temperature measurement with a wide range from -50°C to 300°C.
  • Adjustable emissivity coefficient ε from 0.001 to 1.000 for increased accuracy across various materials.
  • Provides sharp thermal images with multiple color palettes such as rainbow, ironbow, greyscale for easy analysis.
  • PIP (Picture in Picture) function simultaneously displays real image and thermal image for detailed observation.
  • Temperature threshold alarm with audible "beep" to quickly detect abnormal points.
  • Displays maximum, minimum, and spot temperature on thermal images.
  • Storage on 8GB MicroSD card capable of saving up to 6,000 thermal images in .bmp format.
  • USB 2.0 connection for fast data transfer and easy management.
  • Multilingual menu with 5 popular languages: German, English, French, Spanish, Italian.
  • 2.2 inch color TFT LCD screen with 320 x 240 pixel resolution.
  • 3.7V, 1,375mAh lithium-ion rechargeable battery with battery status indicator and auto shut-off after 10 minutes of inactivity.

Applications

The FTI 300 infrared thermal camera is widely used in various fields such as:

  • Inspection and maintenance of electrical and industrial mechanical equipment.
  • Temperature analysis in HVAC systems (heating, ventilation, air conditioning).
  • Temperature monitoring in manufacturing and industrial processes.
  • Detection of hot spots, heat leaks in construction and insulation.
  • Applications in electrical, electronics, automotive, and renewable energy sectors.

Technical Specifications - Handheld Infrared Thermal Camera FTI 300 Geo Fennel

Thermal Imaging

  • Detector: uncooled ceramic thermopile.
  • Wavelength: 6.5 ~ 14 µm.
  • Infrared sensor resolution: 32 x 31 pixels.
  • Thermal sensitivity: <0.15°C (150mK).
  • Field of view (FOV): 40° x 40°.
  • Fixed focus, minimum clear viewing distance 50 cm.
  • Image frequency: 9 Hz.

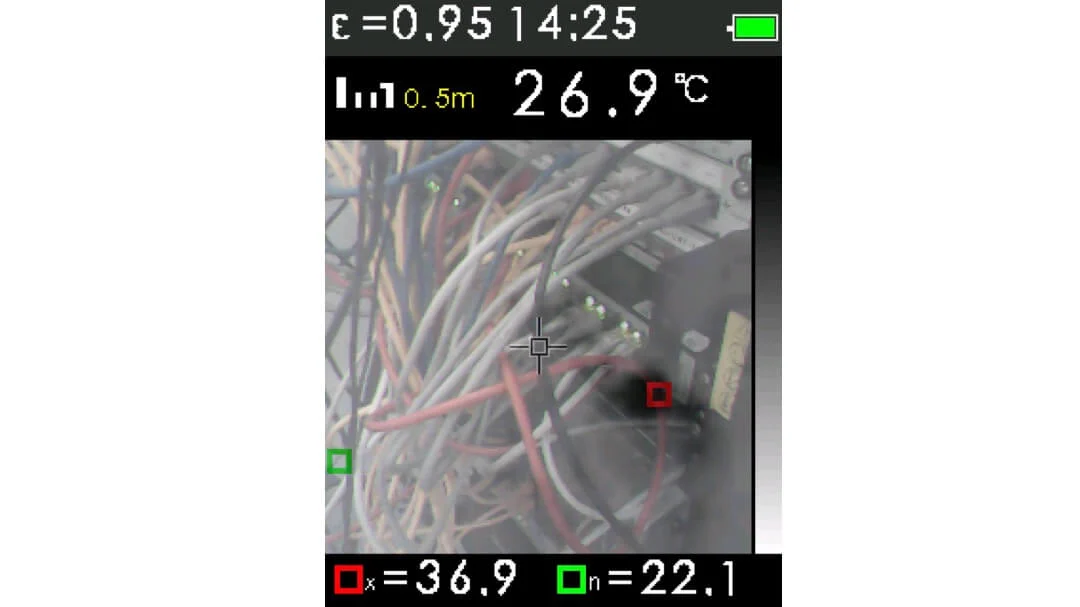

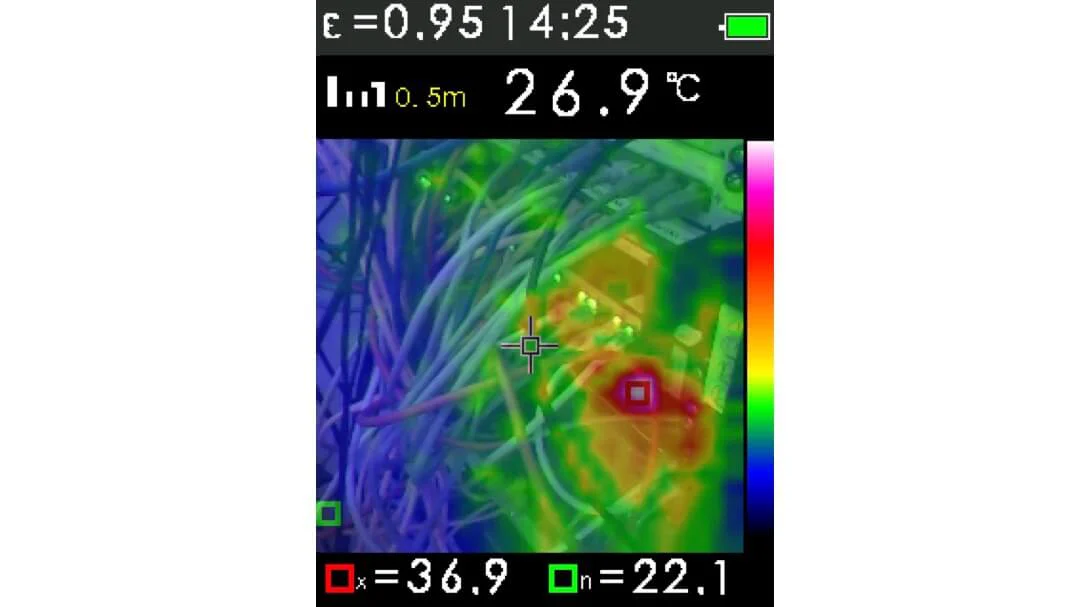

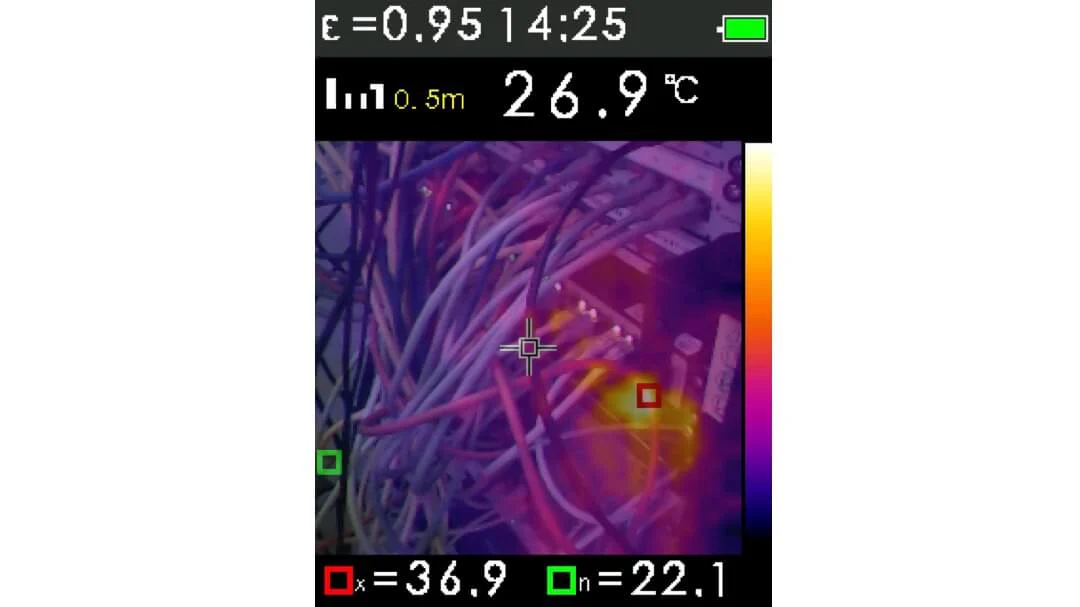

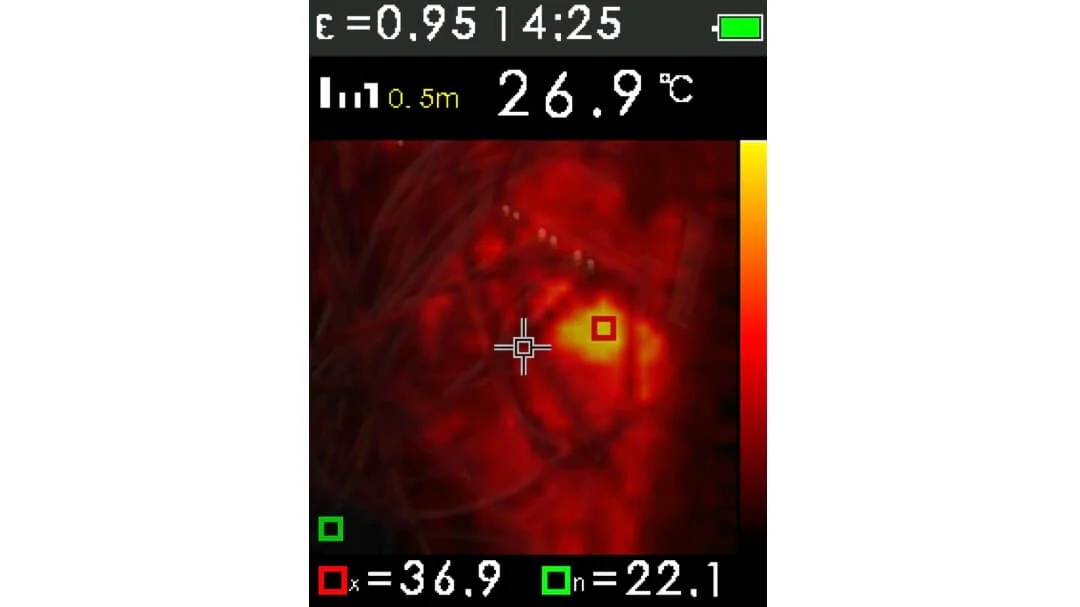

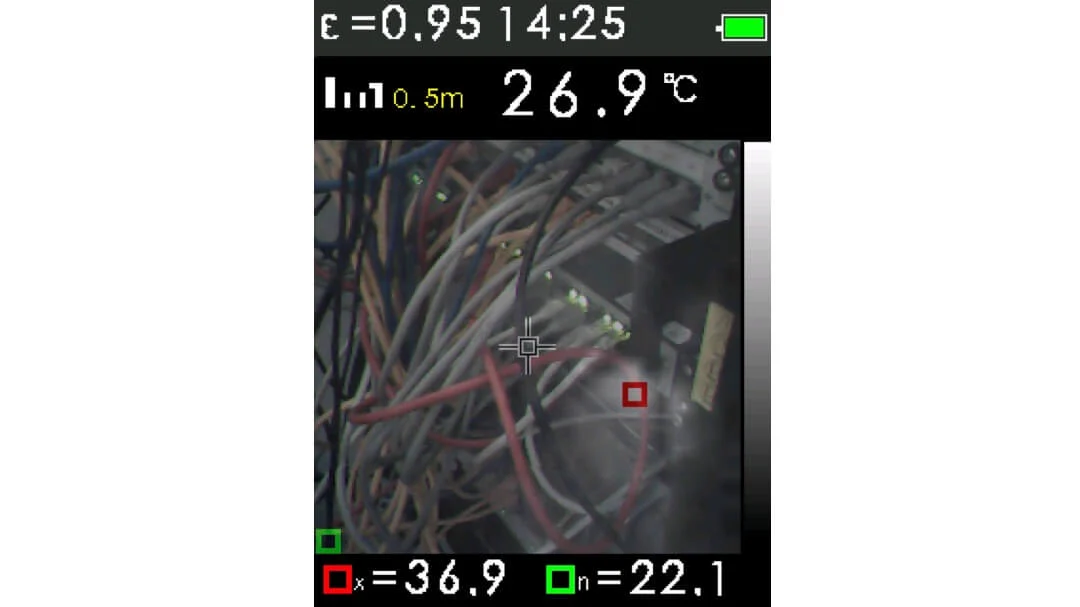

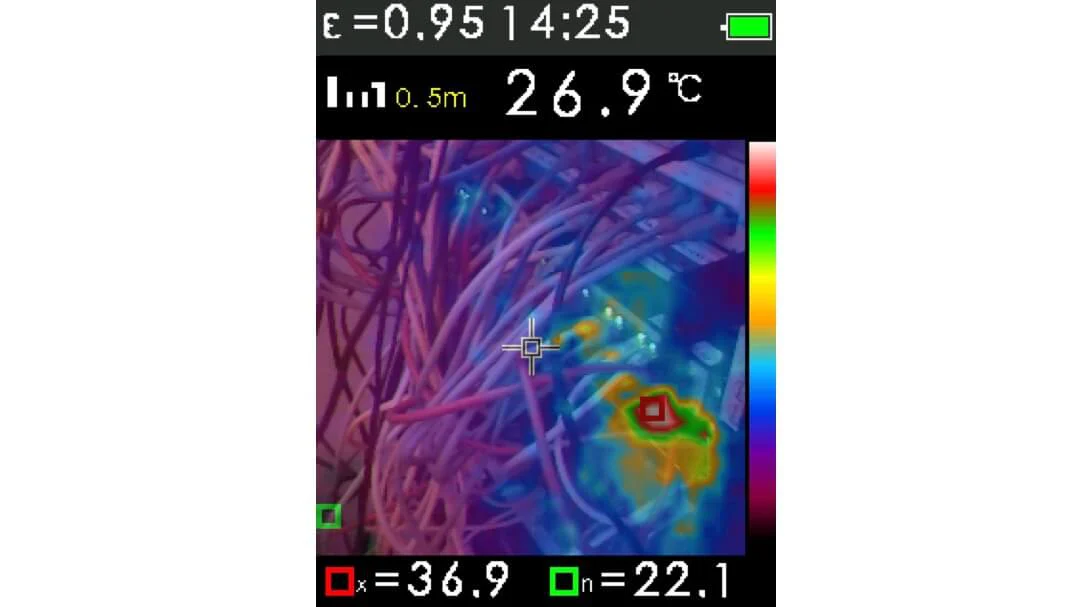

  • Color palettes: 6 types (greyscale-white hot, greyscale-black hot, ironbow, rainbow, rainbow-high contrast, rainbow-hot metal).
  • Integrated digital camera: 48,608 pixels.
  • Display: 2.2" TFT color LCD 320 x 240 pixels.

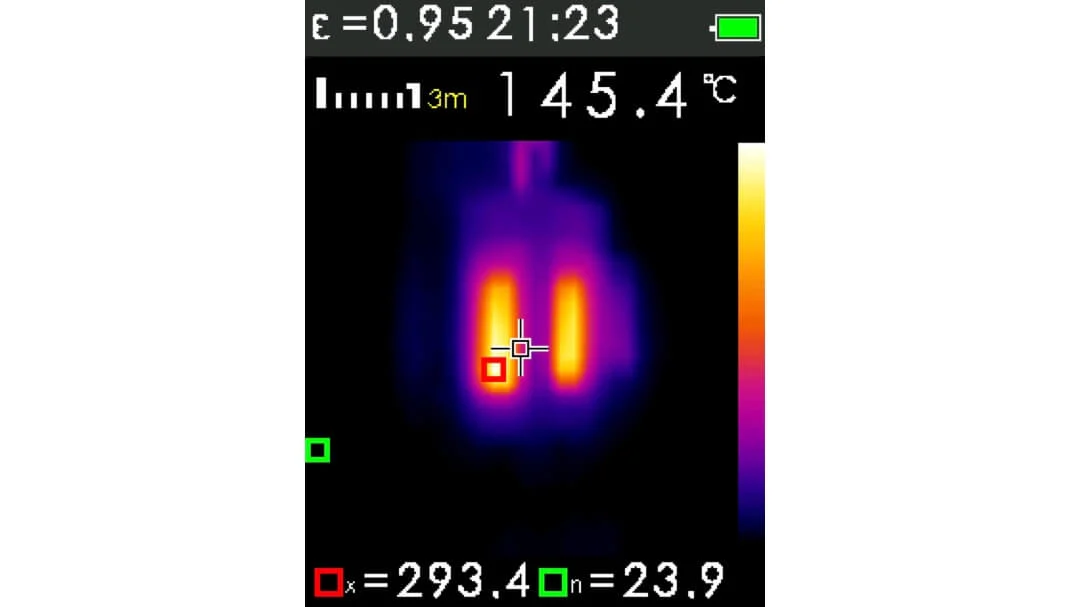

  • PIP function with 5 levels of blending thermal and real images.
  • Focus adjustment: 0.5m, 1m, 2m, 3m.

Temperature Measurement

  • Range: -50°C to 300°C.
  • Units: °C or °F.
  • Accuracy: ±2% or ±2°C at 25°C.
  • Displays average, maximum, minimum values.
  • Adjustable emissivity (ε): 0.001 ~ 1.000.
  • Adjustable reflected temperature: 0°C – +40°C.

Memory and Communication

  • Memory: included 8GB MicroSD card.
  • Image file format: .bmp.
  • Storage capacity: about 6,000 thermal images.
  • Interface: USB 2.0.

Power and Operating Conditions

  • 3.7V, 1,375mAh lithium-ion rechargeable battery.
  • Continuous use time: 4 hours, or 8 hours intermittent work.
  • Auto shut-off after 10 minutes of inactivity.
  • Operating temperature: 0°C – +50°C.
  • Operating humidity: 10%RH – 90%RH.
  • Weight: 410g.
  • Dimensions: 205mm x 155mm x 62mm.

Package Contents

  • 1 main unit FTI 300 officially imported from Geo Fennel.
  • 1 built-in 3.7V, 1,375mAh lithium-ion rechargeable battery.
  • 1 dedicated battery charger.
  • 1 USB 2.0 connection cable.
  • 1 protective carrying case.
  • 1 detailed user manual (multilingual).
  • 1 official 12-month warranty card from Le Quoc Equipment.
Warranty 12 months
