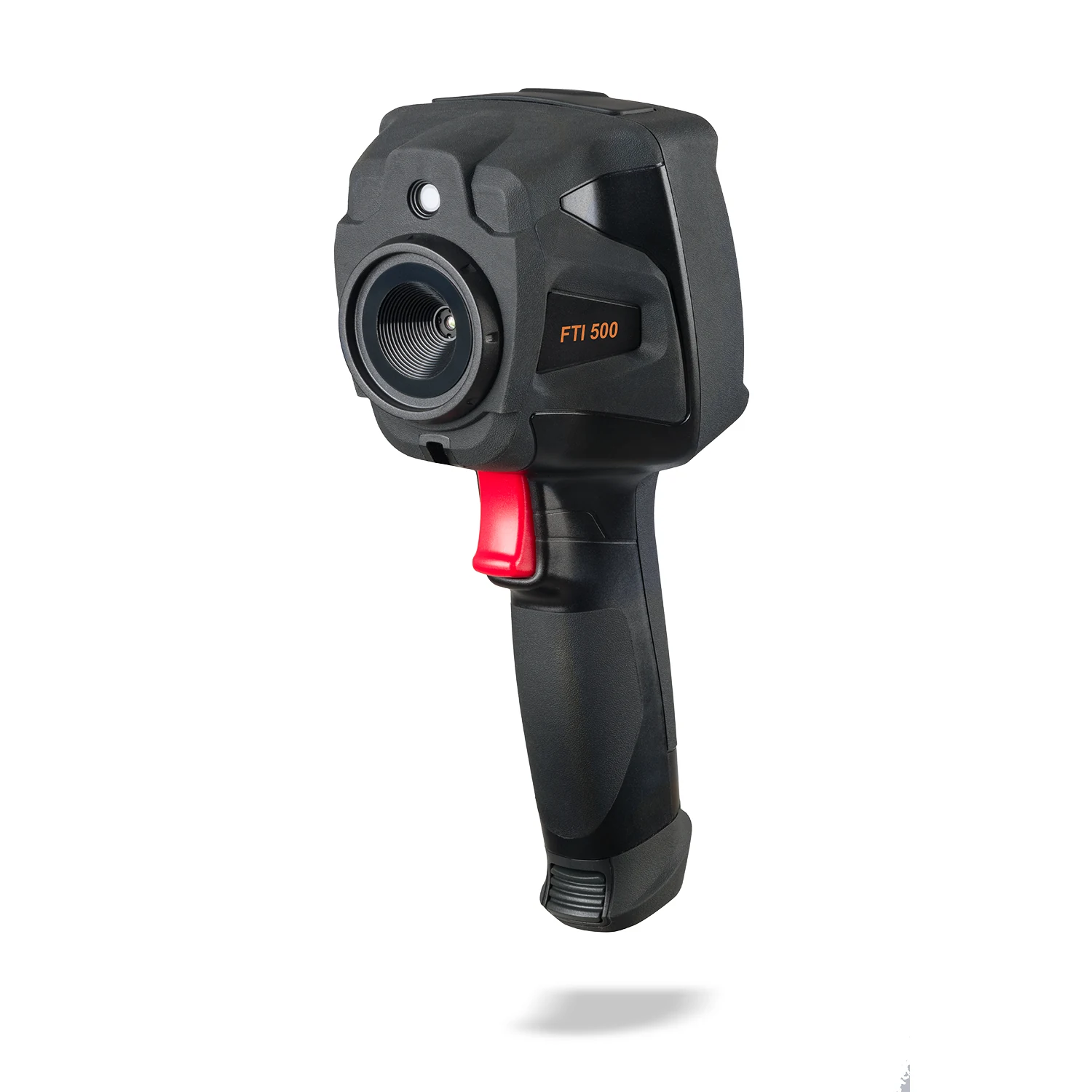

Industrial Thermal Camera FTI 500 - Geo Fennel
- The Industrial Thermal Camera FTI 500 provides accurate thermal images, enabling quick hotspot detection.
- Durable design, easy to use, suitable for various industrial applications.
- Optimal solution for equipment inspection and maintenance.
- Measurement range: -20 ~ +550°C.
- Field of view: 56° x 42° / 0.5 m.
- Display: 3.5-inch TFT Touchscreen.
- Memory card: 8 GB.
- Accuracy: ±2°C / ±2%.
- Rechargeable battery 3.7V.
- Computer interface: USB-C, USB 2.0
Introduction
The Industrial Thermal Camera FTI 500 from Geo Fennel is an advanced infrared temperature measuring device, specially designed for industrial applications requiring high accuracy and reliability. The product combines modern thermal sensor technology with a robust design, suitable for harsh working environments.
Manufactured to German quality standards but assembled in China, the FTI 500 offers an effective solution for temperature inspection, hotspot detection, and thermal analysis across various industries.
With clear thermal image display and versatile measurement functions, the FTI 500 thermal camera supports optimal maintenance, inspection, and equipment monitoring in production lines.
Features
- High thermal image resolution enabling detailed detection of hot and cold spots.
- Wide temperature measurement range suitable for various applications.
- Sharp display screen for easy direct observation of measurement results.
- Robust design, impact-resistant and dustproof, suitable for industrial environments.
- User-friendly interface, easy to operate even for beginners.
- Supports convenient data storage and export for post-measurement analysis.
Applications
The Industrial Thermal Camera FTI 500 is widely used in:
- Electrical system inspection and maintenance: detecting poor contacts, equipment overload.
- Thermal monitoring and analysis in mechanical production lines.
- Insulation inspection and heat leak detection in construction.
- Equipment condition assessment to prevent failures and reduce downtime.
- Research and development requiring precise temperature analysis.
Technical Specifications - Industrial Thermal Camera FTI 500 Geo Fennel
- Temperature range: -20 ~ +550°C
- Thermal sensitivity: <50 mK at +30°C
- Infrared sensor resolution: 256 x 192 pixels
- Field of view (FOV): 56° x 42° / 0.5 m
- Display: 3.5-inch TFT touchscreen
- Color palettes: Feather, Iron, gray, inverse gray, brown, red-green, hot-cold, rainbow
- Expandable memory: 8 GB MicroSD card
- Operating languages: DE, EN, FR, ES, IT
- Focus: fixed
- Accuracy: ±2°C or ±2% of displayed value
- File format: JPEG or HIR files with measurement data
- Computer interface: USB-C, USB 2.0
- PIP (Blending fusion): overlays thermal image with real image at 6 levels (0 ~ 100%)
- Dimensions: 234 x 75 x 100 mm
- Power supply: Li-Ion battery 3.7 V
- Weight: 0.5 kg

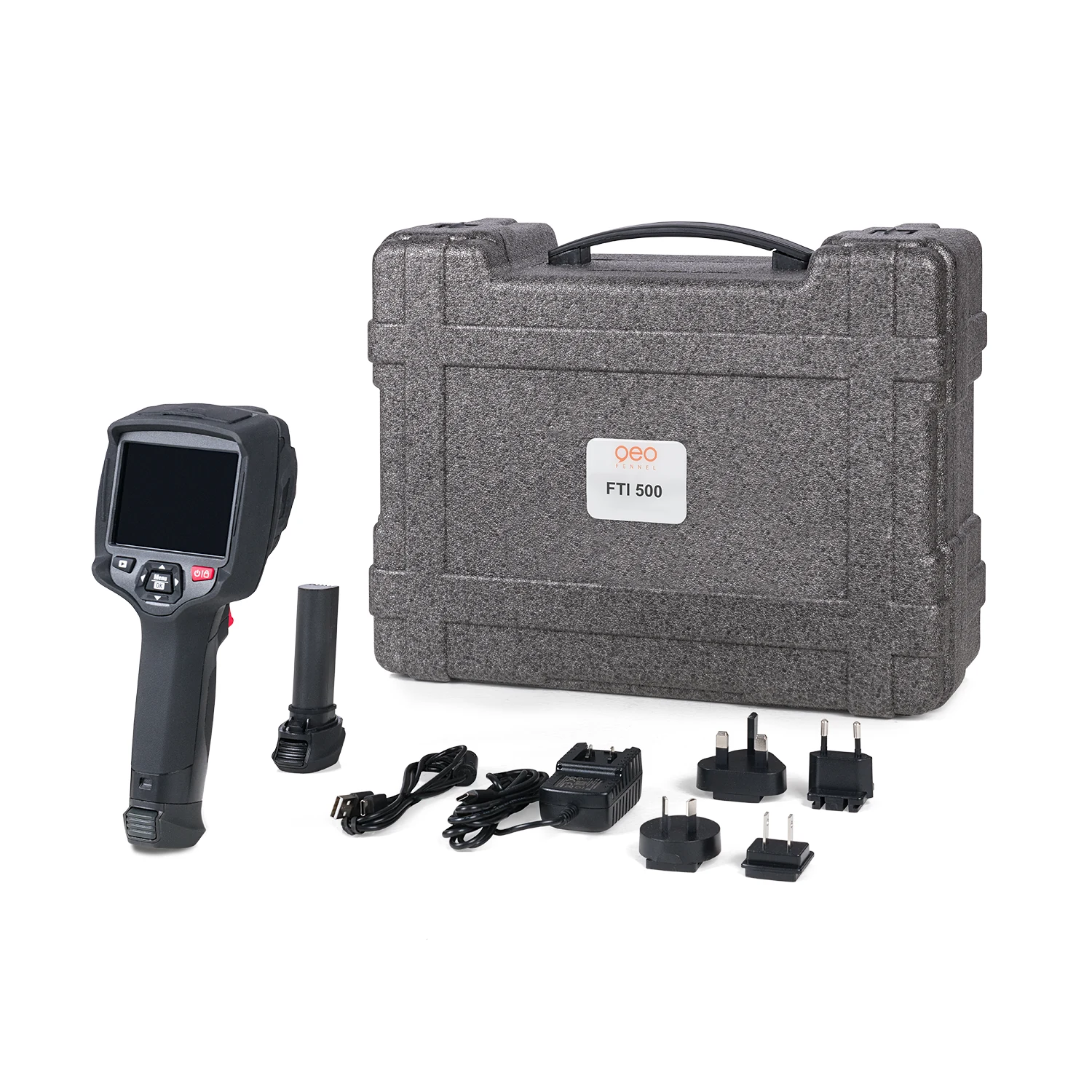

Package Contents
- 1 Industrial Thermal Camera FTI 500 officially imported from Geo Fennel, Germany.
- 2 Li-Ion rechargeable batteries.
- 1 battery charger adapter.
- 1 USB-C cable.
- 1 8 GB memory card.
- 1 carrying case with device and accessories.
- 1 user manual.
- 1 reporting software.
- 1 official warranty card from Le Quoc Equipment.
