GEO4-XR Green Laser Level - Geo Fennel
- Laser beam color GREEN.
- 360° sealed horizontal laser plane.
- 2 vertical laser lines perpendicular to each other.
- Horizontal laser plane perpendicular to the 2 vertical lines.
- Ceiling and floor intersection creates plumb line.
- Automatic leveling, fast, stable, and accurate.
- Uses rechargeable battery via USB port.
- L-shaped multifunctional mounting base.
- Independent control of laser planes.
Introduction

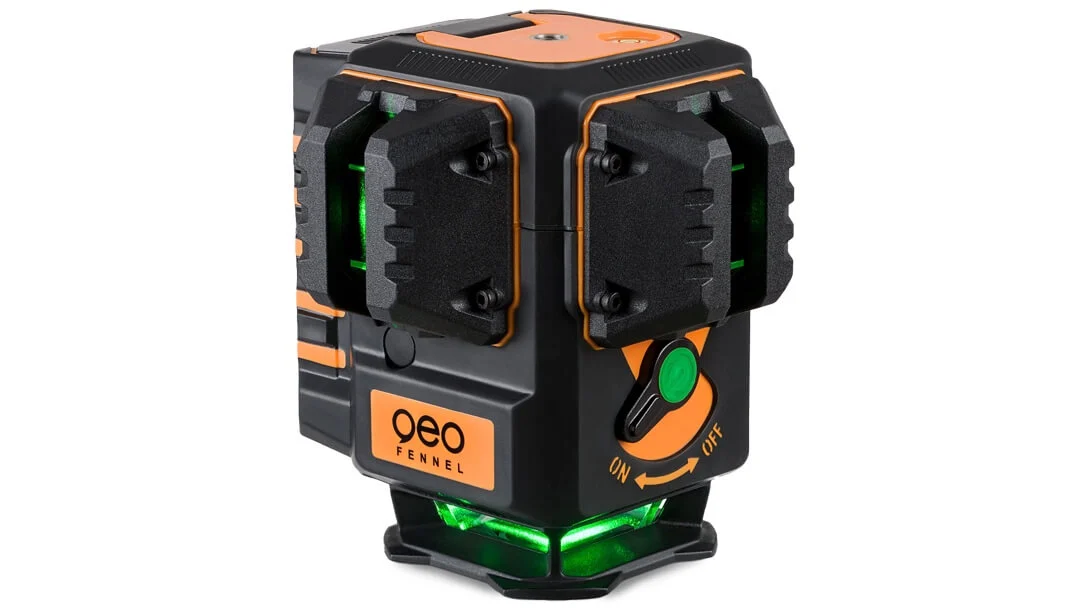

GEO4-XR Green Laser Level by Geo Fennel is a modern laser leveling device suitable for construction and installation projects requiring high accuracy. The device uses a bright green laser beam, enhancing visibility in various lighting conditions.

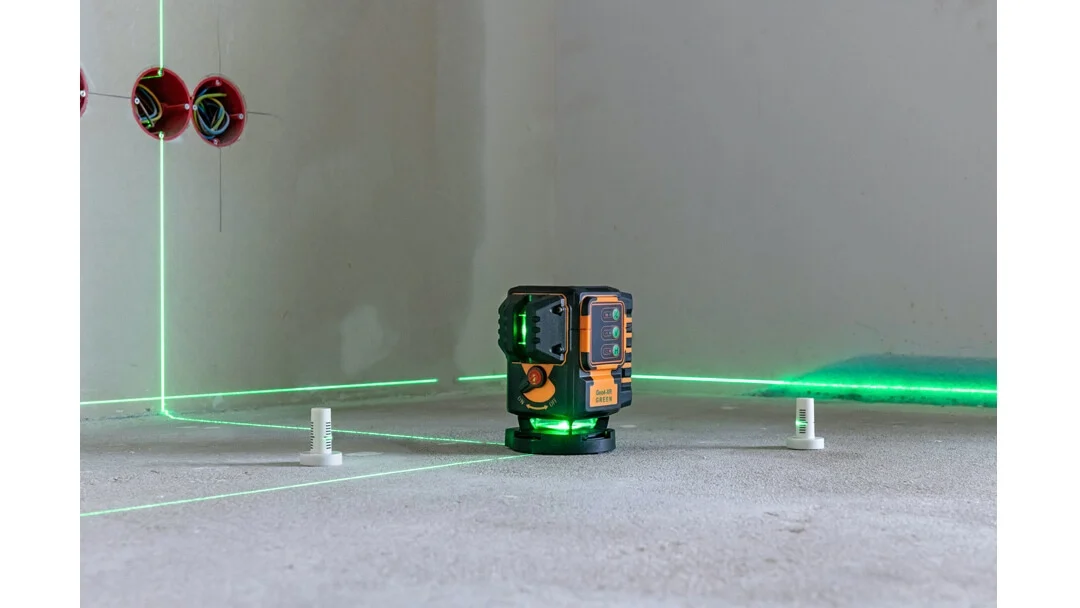

Designed with a 360° sealed horizontal laser plane and two perpendicular vertical laser lines, the GEO4-XR Green provides convenience and efficiency in creating leveling lines and precise measurements on site.
The device features fast and stable automatic leveling and independent control of laser planes, making it easy to operate and versatile for different tasks.
Features

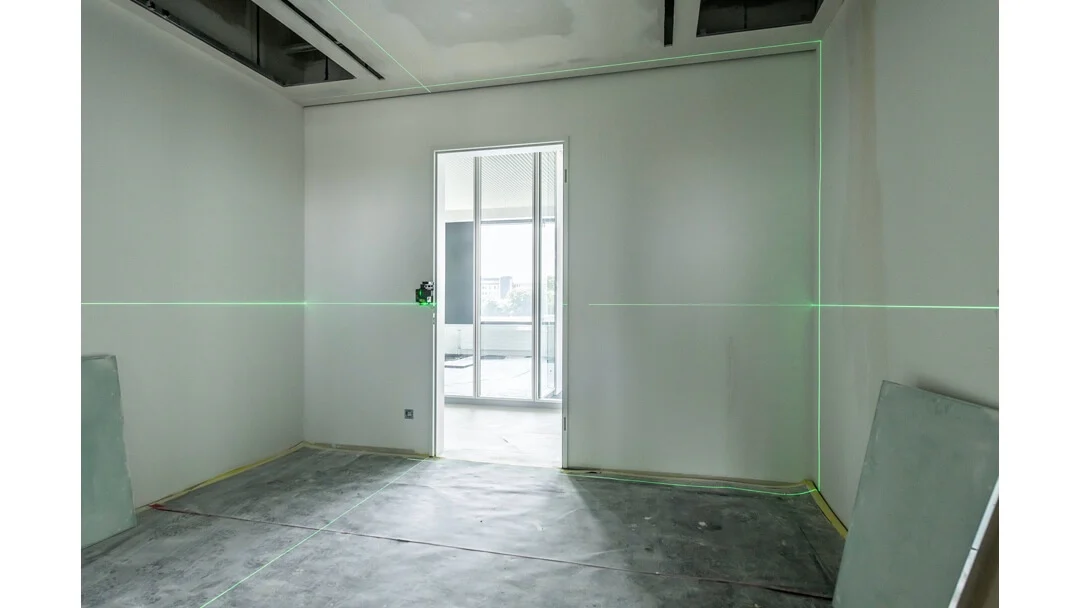

- 360° sealed horizontal laser plane for continuous and precise leveling lines.
- Two vertical laser lines perpendicular with a 130° open angle, creating 4 cross points for easy point positioning.
- Ceiling and floor intersection forms a plumb line supporting precise measurement.
- Independent on/off control of laser planes for flexible use.

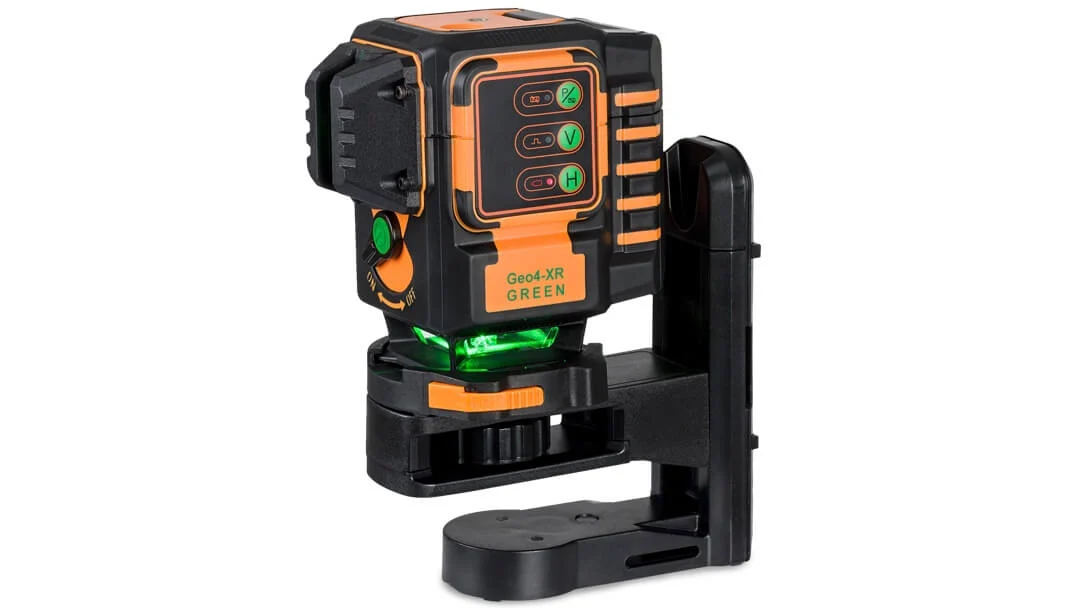

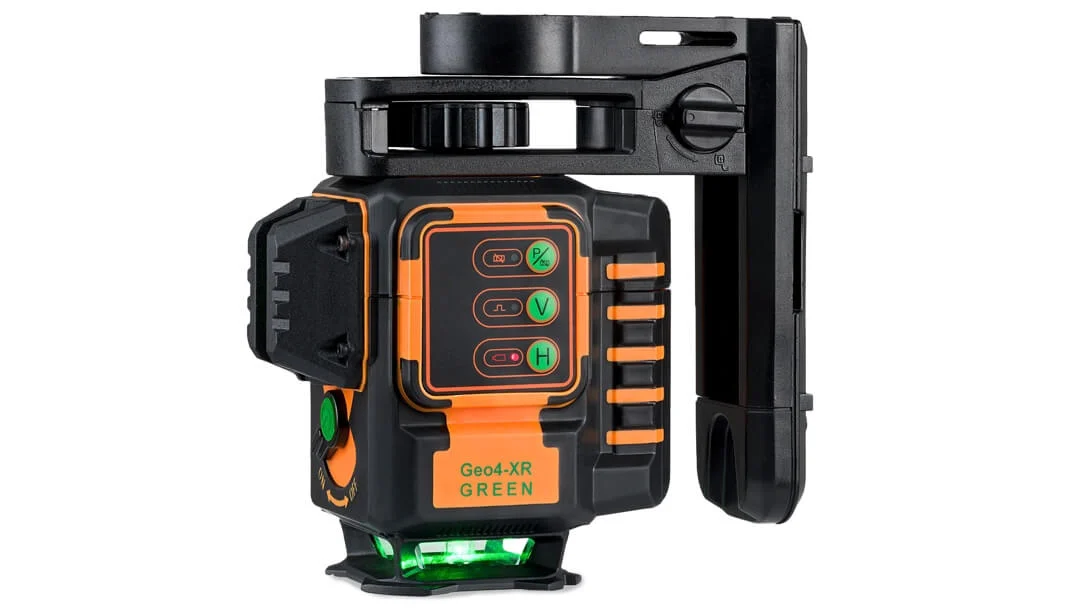

- Multifunctional base with features: height adjustment, rear magnet, wall mount hole, wire hanging hole, ⅝” and ¼” threaded holes.
- Audible alert and flashing light when exceeding self-leveling range for effective warning.
- Lock function for manual leveling on inclined surfaces.
- Rechargeable Li-Ion battery via USB port, continuous operation up to 9 hours.
- IP54 dust and water protection rating, suitable for construction site environments.
- Works with signal receiver extending working range up to 60m.
Applications

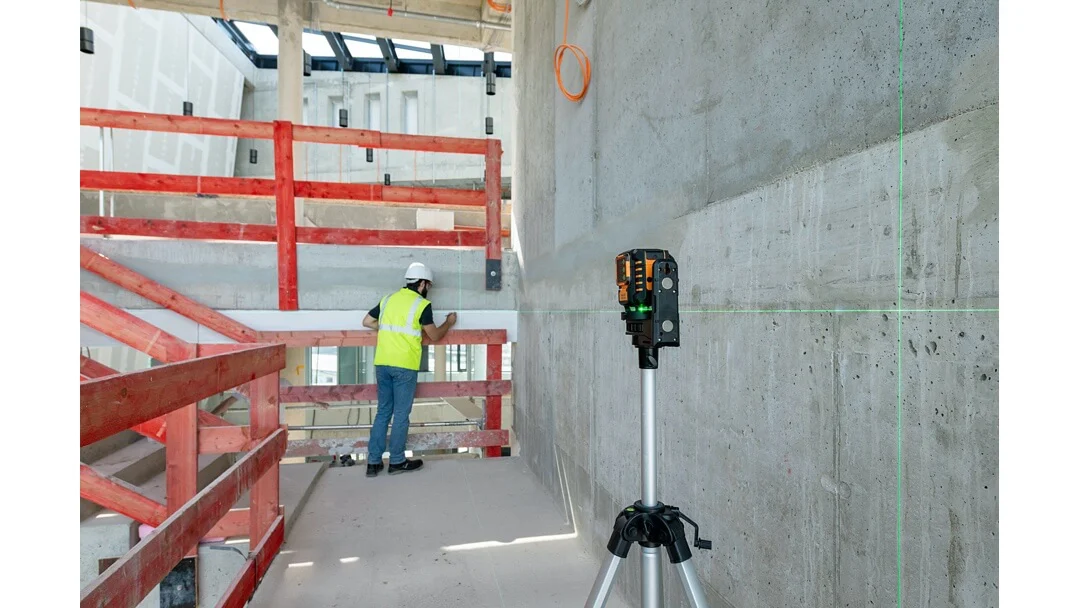

The GEO4-XR Green laser level is suitable for various fields such as construction, interior work, equipment installation, electrical and plumbing installation, and tasks requiring high measurement accuracy. With its clear green laser beam and automatic leveling feature, it helps save time and reduce errors. Especially useful in bright or outdoor environments when used with a signal receiver.
The multifunctional base and independent control of laser planes allow users to easily adjust settings to meet specific job requirements, improving efficiency and accuracy in construction.
Technical Specifications - GEO4-XR Green Laser Level Geo Fennel
- Self-leveling range: ± 3°.
- Accuracy: ± 2 mm / 10 m.
- Laser diode: Green.
- Working radius without receiver: 30 m (depends on ambient light conditions).
- Working radius with receiver: 60 m.
- Dust/water protection: IP54.
- Laser class: 2.
- Battery runtime when fully charged: 9 hours.
- Power source: Li-Ion rechargeable battery.
- Operating temperature: -10°C to +45°C.
- Weight (with battery): 800 g.

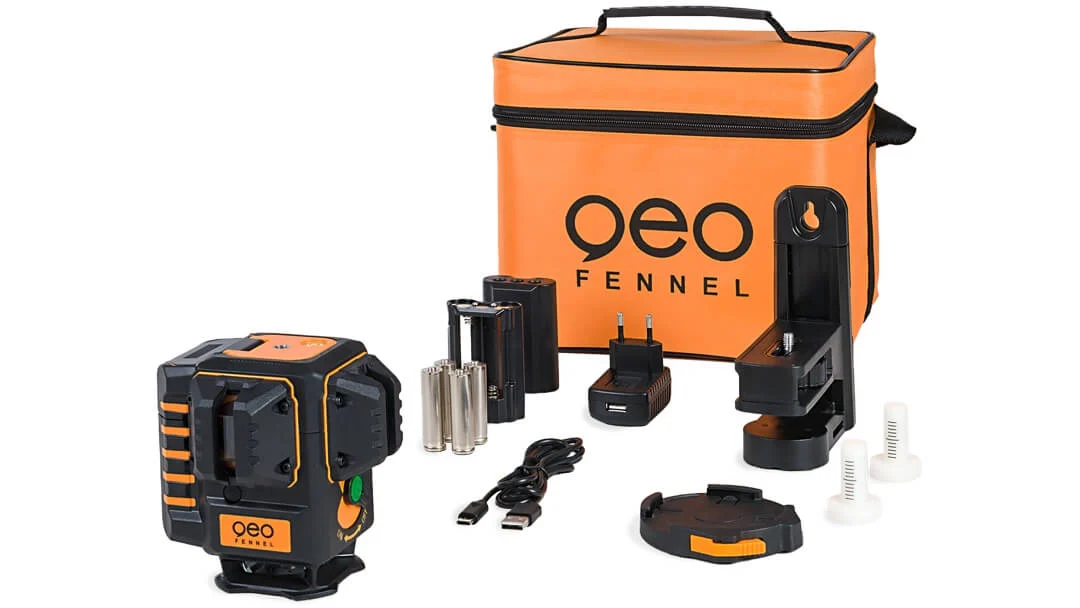

Package Contents
- 1 genuine GEO4-XR Green by Geo Fennel, Germany.
- 1 Li-Ion rechargeable battery pack.
- 1 charger 220V/50Hz - USB 3.0.
- 1 AA battery compartment.
- 1 multifunctional base.
- 1 20mm height extension base with ¼” thread.

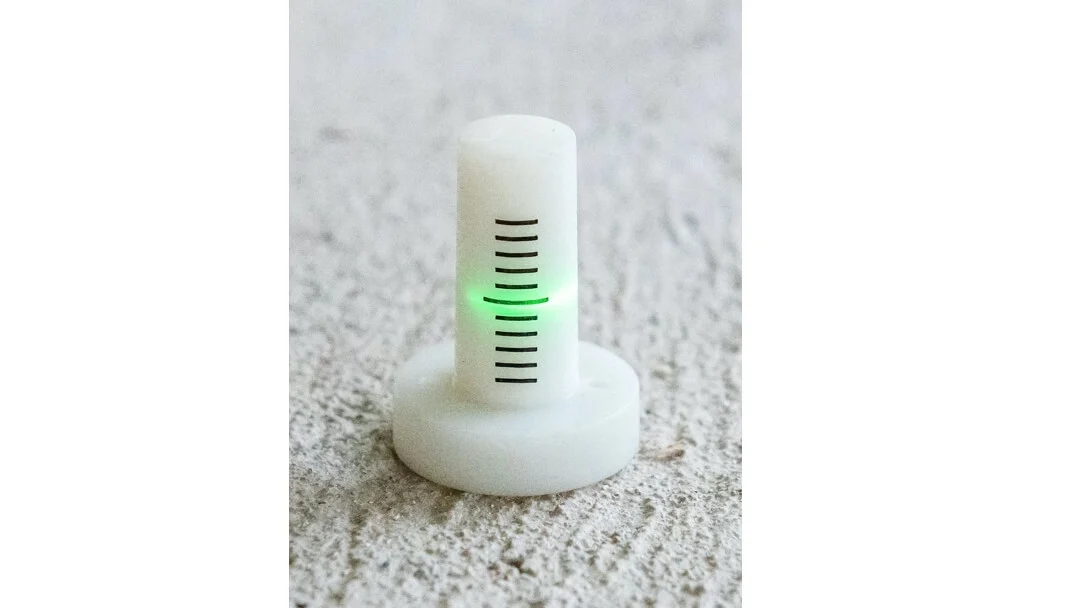

- 2 reflective height targets.
- 1 soft padded carrying pouch for device and accessories.
- 1 user manual.
- 1 12-month genuine warranty card from Le Quoc Equipment.
