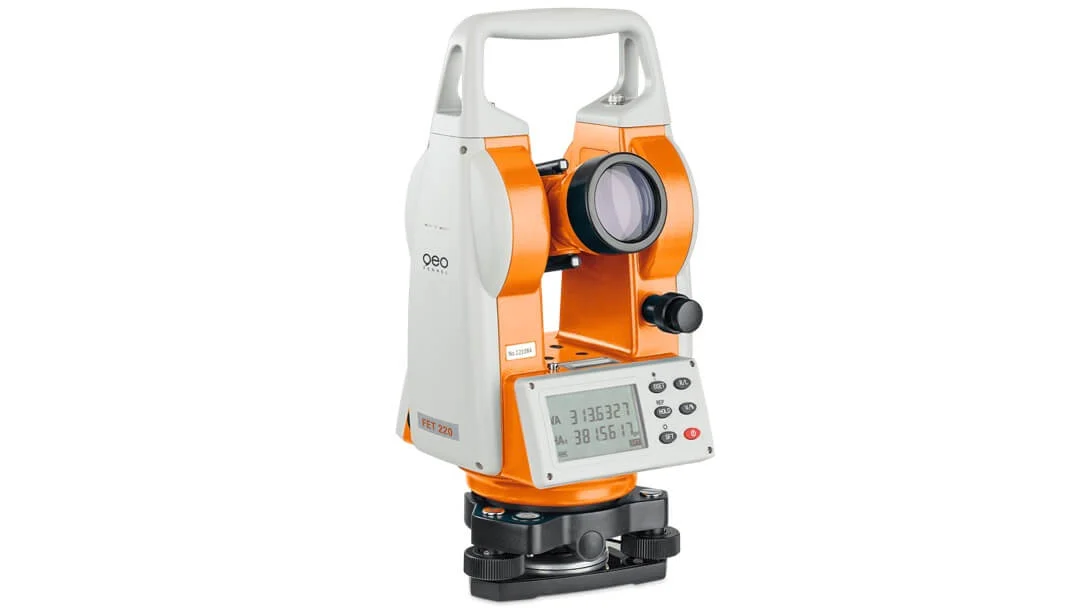

Electronic Theodolite FET 220 - Geo Fennel
- Magnification: 30X.
- Objective diameter: 45 mm.
- Shortest clear sighting distance: 1.5 m.
- Accuracy: 20”
- Reading step: 10”.
- Rechargeable battery.
Introduction
The Electronic Theodolite FET 220 from Geo Fennel is a specialized angle measuring device widely used in construction and surveying projects. This product comes from the reputable Geo Fennel brand (Germany) with high quality and absolute accuracy, meeting technical requirements in civil, industrial, bridge construction, and land leveling applications.
The FET 220 features a modern design, a wide easy-to-read display, and an integrated centering laser for quick and precise field positioning. The device uses a convenient rechargeable battery allowing continuous operation up to 18 hours, suitable for harsh environments.
Introduction Video
Features

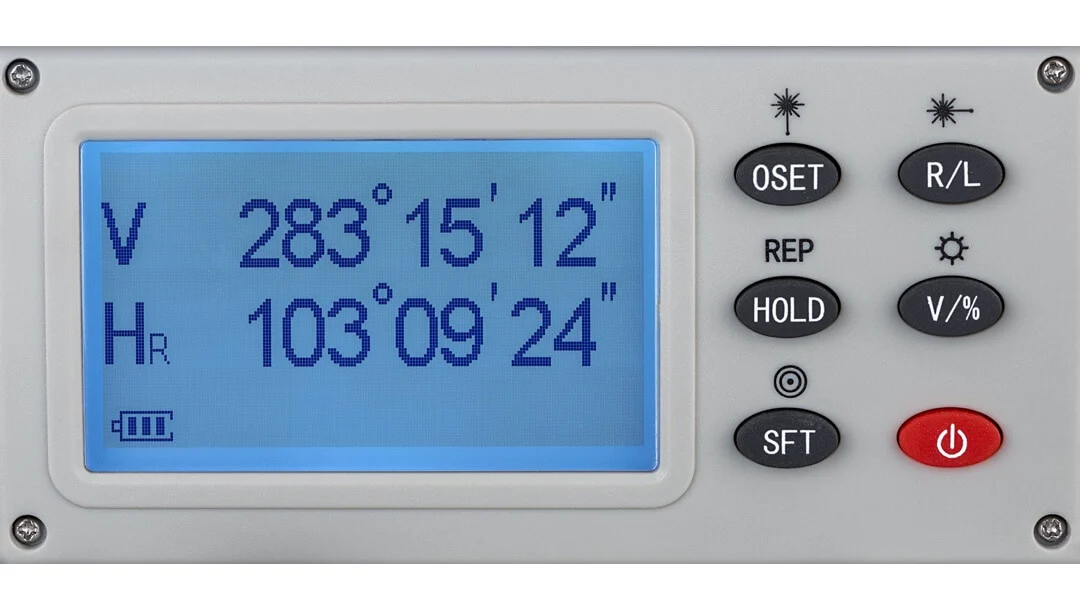

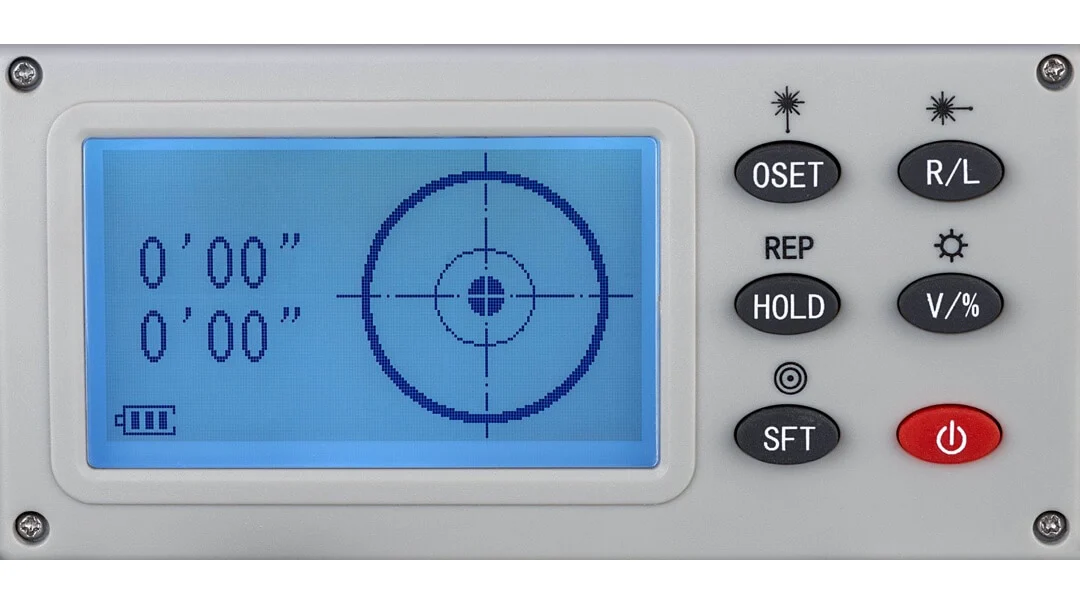

- Wide screen with clear display and backlight for good visibility in low light conditions.
- 2mm diameter centering laser at 1.5m height for fast and accurate ground positioning.
- Powerful electronic compensator with high accuracy ensures stable and reliable measurement results.
- Convenient reading hold function, zero point setting at any position, supports direct and reverse reading.
- Multiple measurement units: degrees (°), percent (%), and gon, suitable for various tasks.
- Robust design, IP54 rated dust and water resistance, operates reliably from -25°C to +50°C.
- NiMH rechargeable battery provides up to 18 hours of continuous operation, easy to replace and recharge.
Applications

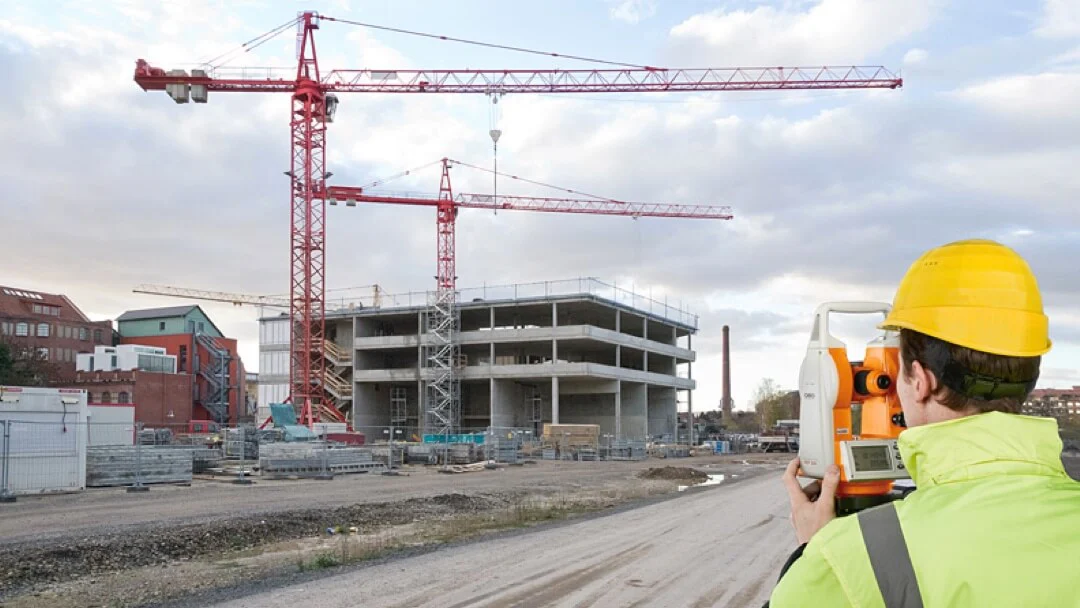

The Electronic Theodolite FET 220 is widely used in surveying and construction sectors such as:
- Angle measurement in civil and industrial construction.
- Inspection and setting of angles in bridge and road construction.
- Land leveling and positioning of elevation points in projects.
- Topographic surveying and other technical surveys requiring high accuracy.
Technical Specifications - Electronic Theodolite FET 220 Geo Fennel
- Magnification: 30X
- Objective diameter: 45 mm
- Shortest clear sighting distance: 1.5 m
- Absolute angle encoder
- Accuracy: 20” (6 mgon)
- Smallest reading step: 10” (3 mgon)
- Measurement units: 360°/400 mgon
- Centering laser point: Ø2mm at 1.5m height
- Laser class: 2
- Battery operating time (full charge): 18h (NiMH battery)
- Operating temperature: -25°C to +50°C
- Dust/water protection rating: IP54
- Instrument head weight: 4.2 kg

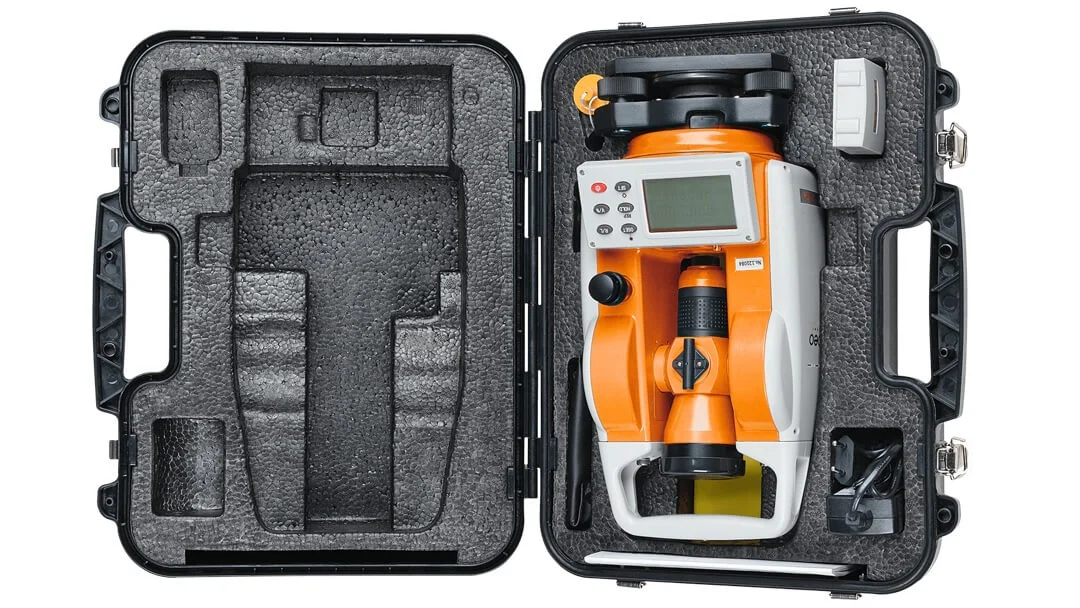

Package Contents
- 1 genuine FET 220 electronic theodolite by Geo Fennel, Germany.
- 1 NiMH rechargeable battery.
- 1 battery charger.
- 1 spare AA battery compartment.
- 1 sturdy carrying case.
- 1 detailed user manual.
- 1 official 12-month warranty card from Le Quoc Equipment.
