UV Meter A/B/C 850031 - Sper Scientific

SKU: 850031 Brand: Sper Scientific, USA Origin: Taiwan
Rating: No reviews yet
  • The Sper Scientific 850031 UV meter provides fast and accurate measurements of three UVA, UVB, UVC ranges.
  • Measurement range UVA/B/C: 0 ~ 20 mW/cm².
  • Type K temperature range: -50.0 ~ 1300.0℃.
  • Type J temperature range: -50.0 ~ 1200.0℃.
  • Compact, easy-to-use device suitable for industrial, medical, and laboratory applications.
25.876.800đ
Backorder Stock: 0
Quantity

Introduction

The Sper Scientific 850031 UV Meter is a specialized device that accurately measures ultraviolet intensity in three UVA, UVB, and UVC bands. The product is compact, convenient, and user-friendly, suitable for various industrial, medical, and laboratory applications.

Manufactured in Taiwan to high-quality standards of Sper Scientific, USA, the 850031 UV meter delivers reliable and stable performance during measurements. The device features a clear LCD display with a data hold function, facilitating convenient data recording and analysis.

Features

  • Simultaneous measurement of three UVA, UVB, and UVC bands with corresponding wavelength ranges: UVA (320 ~ 400 nm), UVB (280 ~ 320 nm), UVC (220 ~ 280 nm).
  • Clear LCD screen displays quick and easily readable measurement values even in low light conditions.
  • Compact and convenient design, easy to hold and operate at various locations.
  • Data Hold function allows users to save measurement results for later analysis.
  • Standard unit mW/cm² complies with industrial and medical measurement standards.
  • Battery operated with long usage time, convenient for field measurements.
  • Device meets precise measurement requirements suitable for high-standard applications.

Applications

  • Checking UV light intensity in medical and industrial irradiation systems.
  • Evaluating UV lamp effectiveness during disinfection and sterilization processes.
  • Monitoring UV levels in scientific research and laboratories.
  • Safety inspection and protection of workers from harmful UV exposure.
  • Applications in water treatment, food, and pharmaceutical industries using UV to ensure quality and safety.

Technical Specifications - Sper Scientific 850031 UV Meter

  • UVA/B Light:

  • Accuracy: ±(4% FS + 2 dgt)
  • Spectral range: 260 nm to 390 nm
  • Sensor structure: Dedicated UVA photodiode sensor with cosine correction filter.

  • Range:

  • 2 mW/cm² (Resolution: 0.001 mW/cm²)
  • 20 mW/cm² (Resolution: 0.01 mW/cm²)

  • UVC Light:

  • Accuracy: ±(4% FS + 2 dgt)
  • Spectral range: 200 nm to 280 nm
  • Sensor structure: Dedicated UVC photodiode sensor with cosine correction filter.

  • Range:

  • 2 mW/cm² (Resolution: 0.001 mW/cm²)
  • 20 mW/cm² (Resolution: 0.01 mW/cm²)

  • Type K/J Thermocouple Thermometer:

  • Type K:

  • Range: -50.0 ~ 1300.0℃ (Resolution: 0.1℃)
  • Accuracy: ±(0.4% + 0.5℃).

  • Type J:

  • Range: -50.0 ~ 1200.0℃ (Resolution: 0.1℃)
  • Accuracy: ±(0.4% + 0.5℃).

  • General Specifications:

  • Circuit: Custom single-chip LSI microprocessor
  • Power supply: 6 DC 1.5V batteries (UM3, AA) or optional DC 9V adapter

  • Power consumption:

  • Normal operation (no SD card data save, LCD backlight off): approx. DC 6.5 mA
  • Saving data to SD card with LCD backlight off: approx. DC 30 mA
  • With LCD backlight on: additional approx. DC 16 mA

  • Operating Environment:

  • Temperature: 0 ~ 50℃
  • Humidity: below 85% RH.

  • Dimensions:

  • Device: 177 x 68 x 45 mm
  • UVA Probe: diameter 45 mm x height 32 mm
  • UVC Probe: diameter 38 mm x height 25 mm.

  • Weight:

  • Device: 351 g
  • UVA Probe: 100 g
  • UVC Probe: 103 g

  • Data Logger:

  • Automatic: from 1 second to 3600 seconds
  • Manual: set sample time = 0 seconds to use manual logging mode with positions from 1 to 99

  • Display:

  • Type: LCD with green backlight (ON/OFF)
  • Size: 52 mm x 38 mm

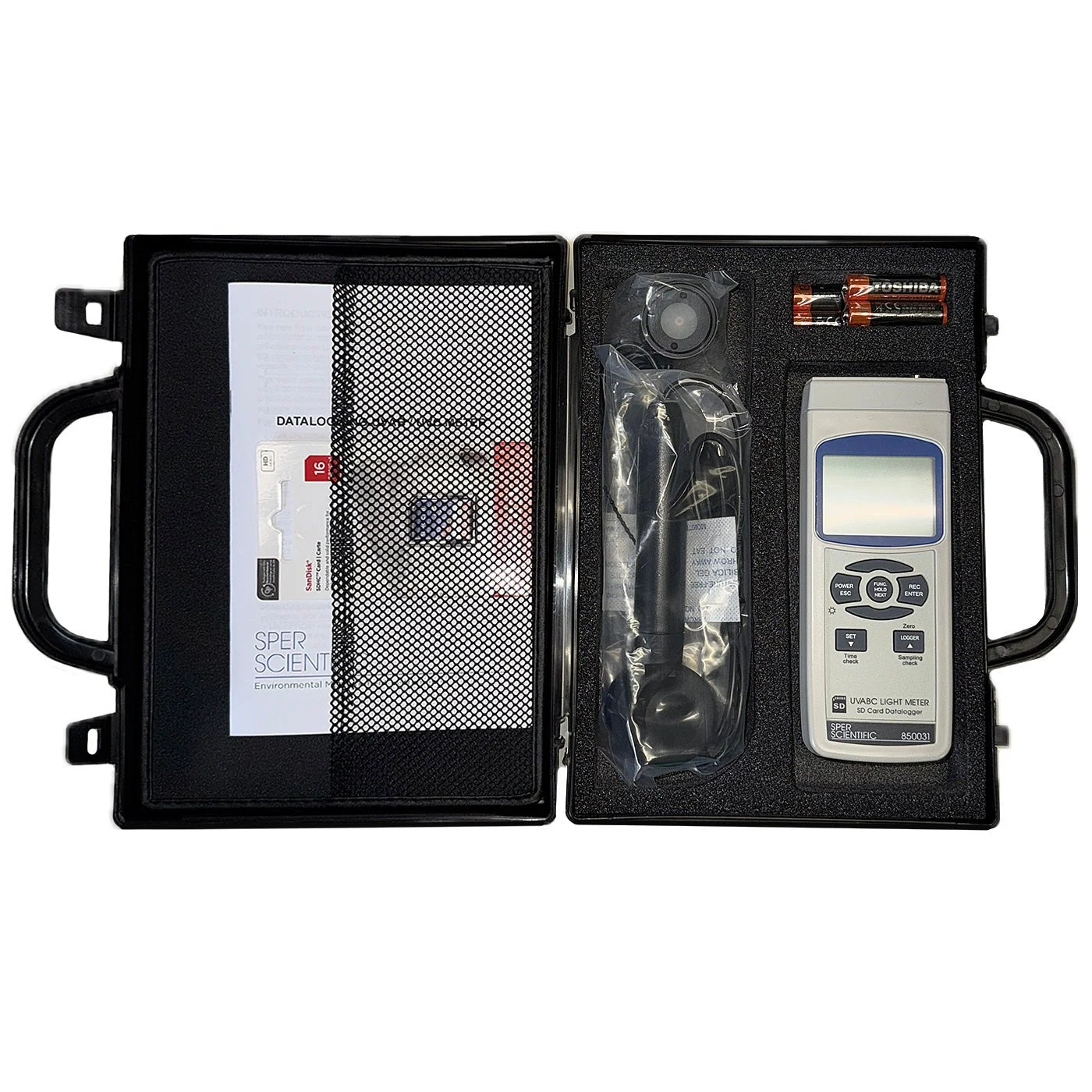

Package Contents

  • 1 Handheld UV meter 850031 officially imported from Sper Scientific, USA.
  • 1 official 12-month warranty card provided by Le Quoc Equipment.

  • Included accessories:

  • User manual: 1 piece
  • UVA light sensor: 1 piece
  • UVC light sensor: 1 piece
  • Hard carrying case (CA-06): 1 piece

  • Optional accessories:

  • SD card (up to 16 GB)
  • Type K thermocouple probes (TP-01, TP-02A, TP-03, TP-04, TP-05)
  • AC to DC 9V power supply
  • USB cable (USB-01)
  • RS232 cable (UPCB-02)
  • Data acquisition software (SW-U801-WIN)
  • Excel data acquisition software (SW-E802)
Warranty 12 months
