Handheld Vibration Meter - 840063 - Sper Scientific
- Measures velocity and vibration acceleration.
- Velocity: 0.5 ~ 199.99 mm/s.
- Acceleration: 0.5 ~ 199.9 m/s²
- Magnetic sensor.
- RMS, Peak, Min/Max, Data Hold.
- Low battery alert, auto power off.
Introduction

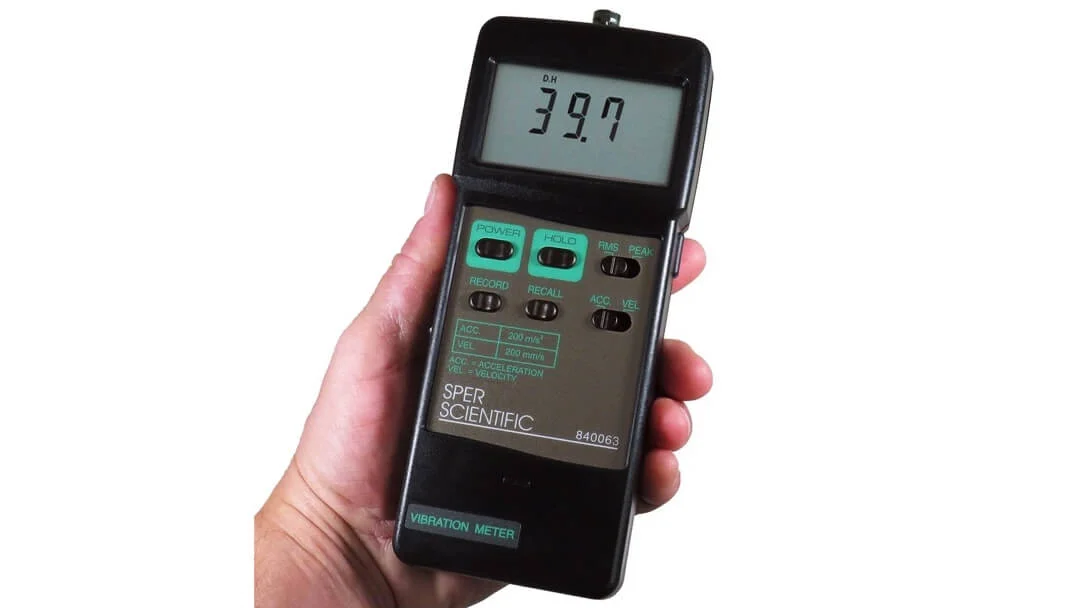

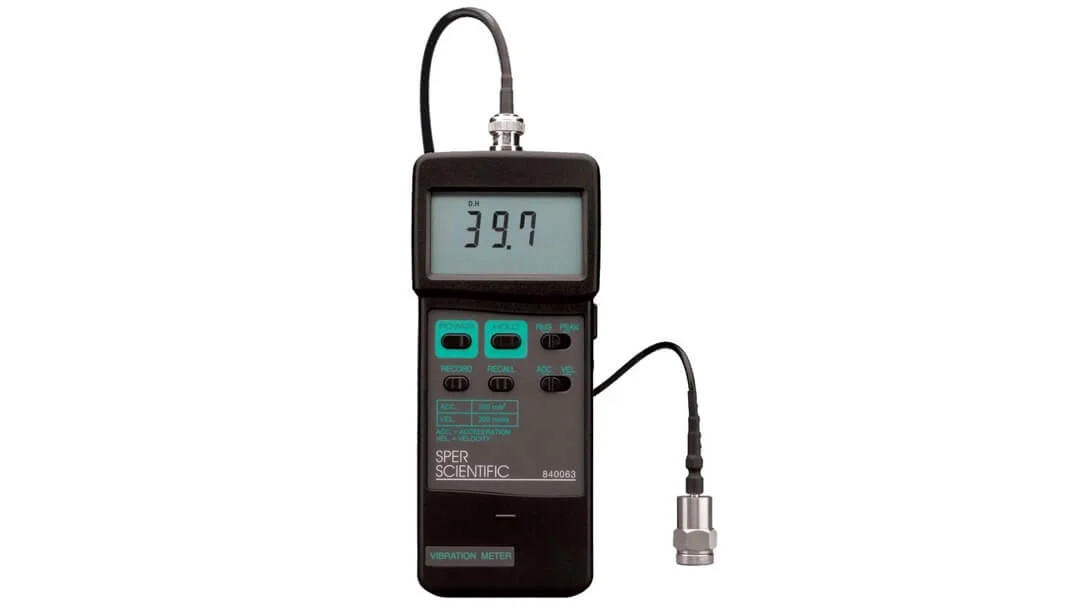

Handheld Vibration Meter - 840063 - Sper Scientific is a specialized device designed for precise measurement of vibration velocity and acceleration, helping early detection of abnormalities in industrial machinery. This device is ideal for technicians and maintenance teams to monitor the operating condition of pumps, motors, and various other machines.
With a convenient magnetic sensor and a large clear LCD screen, this vibration meter provides RMS, Peak, Min/Max parameters and a data hold function, enabling users to easily monitor and analyze vibration data for timely corrective actions.
Features
- Accurately measures vibration velocity from 0.5 to 199.99 mm/s.
- Measures vibration acceleration from 0.5 to 199.9 m/s², equivalent to 0.05 ~ 20.39 g or 2 ~ 656 ft/s².

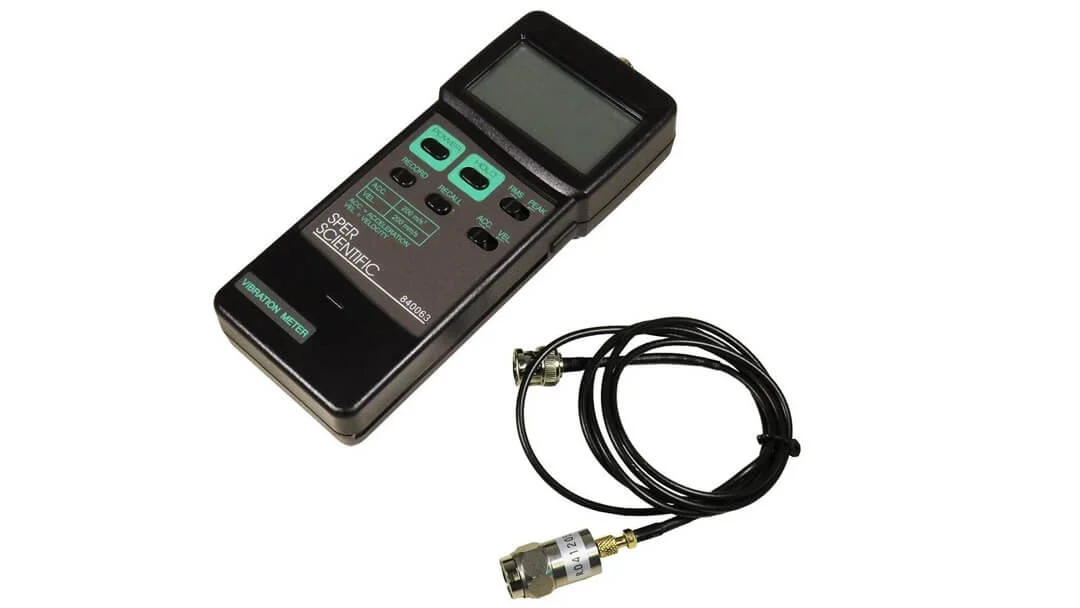

- Detachable magnetic sensor allows easy attachment, convenient for measuring multiple positions.
- Large LCD displays RMS, Peak, Min/Max values with data hold function for quick data analysis.
- Low battery warning and automatic power-off function conserve energy and extend battery life.
- Comes complete with a 9V battery, protective carrying case, and detailed user manual.
- Compact design, lightweight, easy to carry and operate in industrial environments.
Applications
The 840063 handheld vibration meter is widely used in industrial fields to monitor machine operating conditions, especially pumps, motors, fans, and other rotating equipment. It helps early detection of faults such as imbalance, misalignment, and mechanical looseness, supporting predictive maintenance and preventing serious failures.
The device is also suitable for technicians and maintenance teams in factories, workshops, and service centers to ensure stable, safe, and cost-effective machine operation.
Specifications - Handheld Vibration Meter - 840063 Sper Scientific
Velocity
- Range: 0.5 ~ 199.99 mm/s
- Accuracy: ± (5% + 2 digits)
- Resolution: 0.1 mm/s
Acceleration
- Range: 0.5 ~ 199.9 m/s²
- Accuracy: ± (5% + 2 digits)
- Resolution: 0.1 m/s²
Acceleration (unit g @ 1 g = 9.8 m/s²)
- Range: 0.05 ~ 20.39 g
- Accuracy: ± (5% + 2 digits)
- Resolution: 0.01 g
Acceleration (unit ft/s²)
- Range: 2 ~ 656 ft/s²
- Accuracy: ± (5% + 2 digits)
- Resolution: 1 ft/s²
Frequency
- Range: 10 Hz - 1 KHz
General Specifications
- Sensor cable length: 125 cm (49 inch)
- Sensor diameter: 19 mm
- Sensor weight with magnetic base: 50 g
- Power supply: common 9V square battery
- Sampling time: approximately 1 second
- Operating temperature: 0°C to 50°C
- Operating humidity: below 80% RH
- Device dimensions: 180 × 76 × 38 mm
- Device weight: 230 g

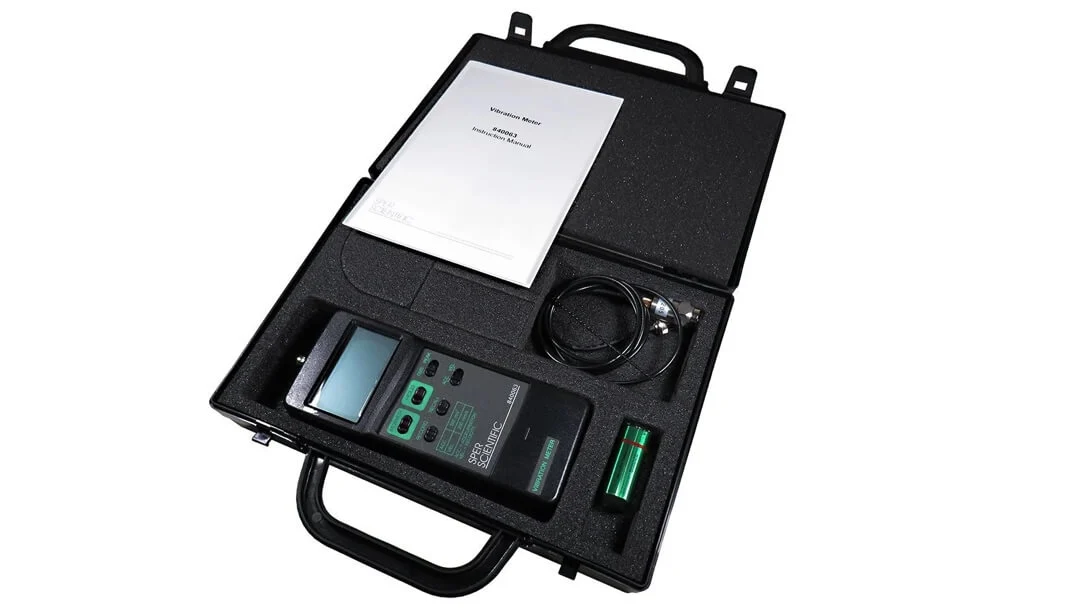

Package Contents
- 1 handheld vibration meter 840063 genuine Sper Scientific, USA.
- 1 disposable 9V battery (rechargeable battery can be used but must be purchased separately by user).
- 1 detachable magnetic probe.
- 1 sturdy carrying case for device and accessories.
- 1 detailed user manual.
- 1 official 6-month warranty card from Le Quoc Equipment.
