Datalog 850005 Light Intensity Meter - Sper Scientific
- Measures light intensity 0 ~ 100 kLux.
- K/J type temperature measurement -50°C - 1,300°C.
- Units: Lux, FC, °C, °F.
- SD card stores real-time measurement data.
- Retrieve measurement reports as spreadsheets with date and time.
- Min/Max/Hold/battery alert/auto power off.
- Zero calibration with one button.
Introduction
The Datalog 850005 Light Intensity Meter is a specialized industrial measuring device from Sper Scientific, USA, officially imported from Taiwan. It is designed for precise light intensity measurement with a wide range up to 100 kLux, and also integrates K/J type temperature measurement ranging from -50°C to 1,300°C.
The meter can store measurement data on an SD card and supports retrieving reports as spreadsheets with accurate date and time, making data analysis and management more convenient than ever. With smart features like quick zero calibration, Min/Max/Hold modes, and auto power off, the Datalog 850005 is an ideal choice for light intensity and temperature measurement in industrial environments.
Features
- Measures light intensity in Lux and Foot Candle (FC), covering a wide range up to 100,000 Lux and 10,000 FC.
- K and J type temperature measurement from -50°C to 1,300°C, suitable for many high-temperature applications.
- Light compensation function for different lamp types such as filament, fluorescent, and mercury to improve measurement accuracy.
- Unlimited data storage on SD card with Excel spreadsheet report export including date and time.
- Min/Max/Hold functions, easy zero calibration with one button, auto range switching, and auto power off when idle.
- Large LCD with backlight for clear reading in all lighting conditions.

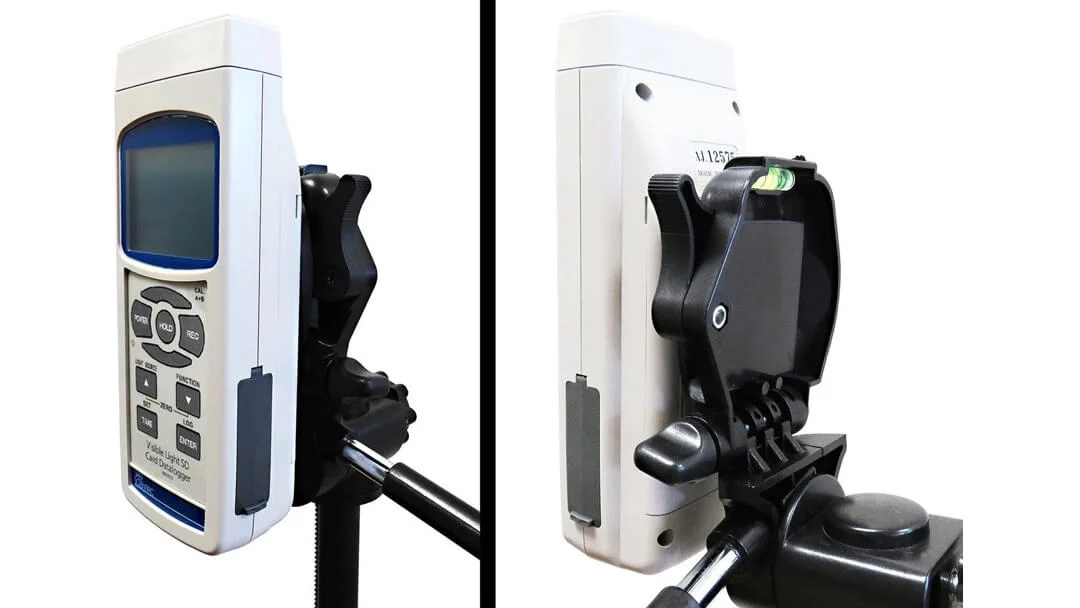

- Compact and lightweight design, easy to mount on tripods with ¼ inch threaded hole.
Applications
The Datalog 850005 Light Intensity Meter is widely used in industries, laboratories, product quality inspection, environmental research, light control in manufacturing plants, greenhouses, offices, and areas requiring precise light and temperature control.
This device is also suitable for engineers and technicians who need to collect and analyze light and temperature data in research and product development projects.
Specifications - Datalog 850005 Light Intensity Meter Sper Scientific
Light Intensity Measurement (Lux)
- 2,000 lux with 1 increment.
- 20,000 lux with 10 increments.
- 100,000 lux with 100 increments.
Accuracy: ± (4% reading + 2 digits).
Light Intensity Measurement (Foot Candle - FC)
- 200 FC with 0.1 increment, accuracy ± (4% reading + 2 digits).
- 2,000 FC with 1 increment, accuracy ± (4% reading + 2 digits).
- 10,000 FC with 10 increments, accuracy ± (4% reading + 20 digits).
K Type Temperature Measurement
- Range: -50ºC to +1,300ºC (-58ºF to +2,372ºF).
- Resolution: 0.1.
- Accuracy: ± (0.4% + 1ºC) full range.
J Type Temperature Measurement
- Range: -50ºC to +1,200ºC (-58ºF to +2,192ºF).
- Resolution: 0.1.
- Accuracy: ± (0.4% + 1ºC) full range.
- Dimensions: 178 × 70 × 44 mm.
- Weight: 450 g.

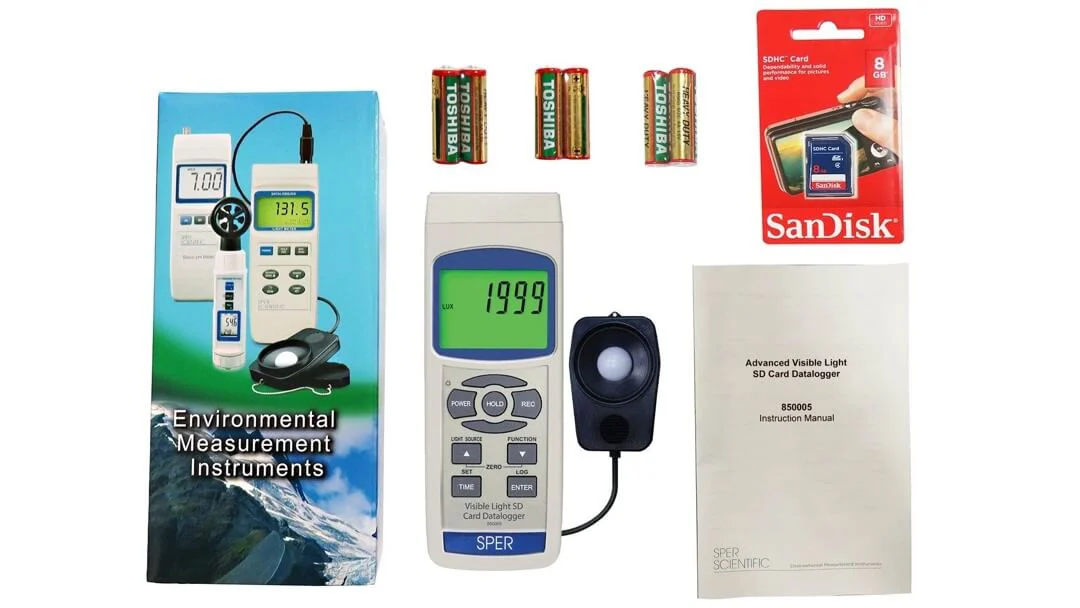

Package Contents
- 1 unit of 850005 officially imported from Sper Scientific, USA.
- 1 light sensor included.
- 1 sensor protective cap.
- 6 AA batteries for operation.
- 1 SD card for data storage.
- 1 carrying pouch for meter and accessories.
- 1 detailed user manual.
- 1 official 12-month warranty card from Le Quoc Equipment.
